SKU: 31304-EU
31304 Budget Taper Roller Bearing 20x52x16.25mm
31304 Budget Taper Roller Bearing 20x52x16.25mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
10+
€7,48
19+
€7,06
29+
€6,98
39+
€6,90
49+
€6,81
74+
€6,73
99+
€6,31
199+
€6,22
249+
€6,14
499+
€6,06
999+
€5,89
Description
Description
|
Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads. Supplied as a two part set consisting of the cone inner part where the rollers and cage are located and the outer cup part. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 16.25mm
- Seals / Shields:
- None
Technical
Technical

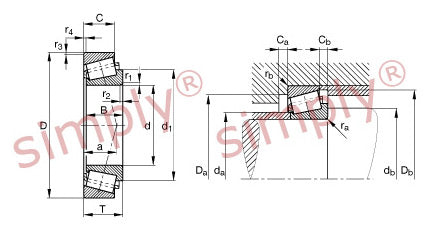

| d | 20mm |
|---|---|
| D | 52mm |
| T | 16.25mm |
| a | 16mm |
| B | 15mm |
| C | 11mm |
| Ca min | 3mm |
| Cb min | 5mm |
| Da max | 45mm |
| Da min | 40mm |
| Db min | 48mm |
| d1 | 37.3mm |
| da max | 27mm |
| db min | 27mm |
| r1, 2 min | 1.5mm |
| r3, 4 min | 1.5 mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| Cr | 30500 N |
| C0r | 29500 N |
| e | 0.73 |
| Y | 0.82 |
| Y0 | 0.45 |
| Cur | 3350 N |
| nG | 14900 1/min |
| nB | 8400 1/min |
| kg | 0.174 kg |
