SKU: 32010JR

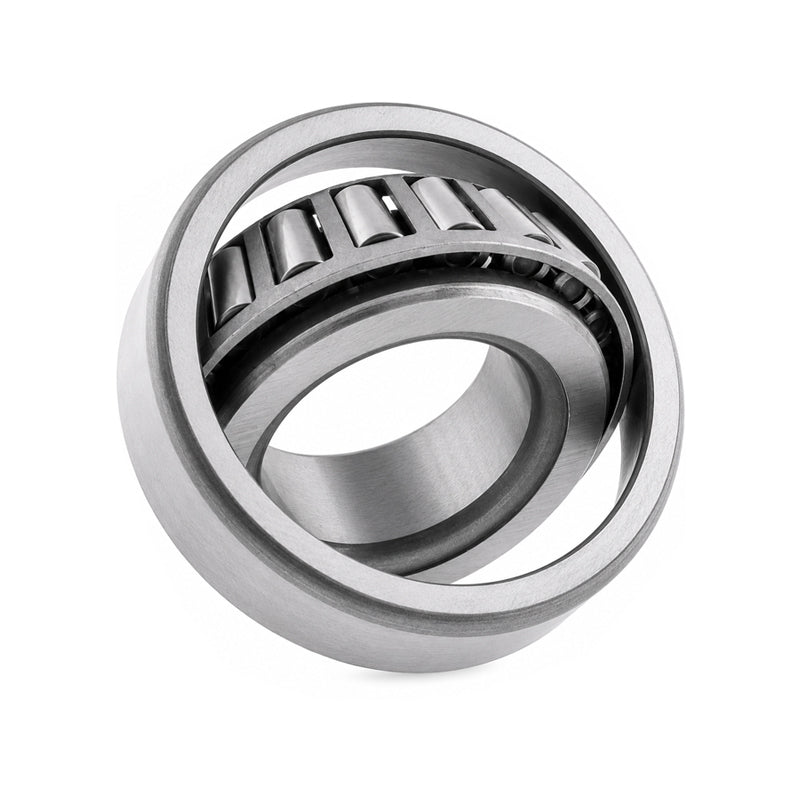

KOYO 32010JR Metric Single Row Taper Roller Bearing 50x80x20mm
KOYO 32010JR Metric Single Row Taper Roller Bearing 50x80x20mm
Regular price
€25,95
ex VAT
Regular price
Sale price
€25,95
ex VAT
In stock
Price Break
10+
€19,36
20+
€18,27
30+
€18,05
40+
€17,84
50+
€17,62
75+
€17,40
100+
€16,31
200+
€16,10
250+
€15,88
500+
€15,66
1000+
€15,23
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 20mm
- Seals / Shields:
- None
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| T | 20mm |
| B | 20mm |
| C | 15.5mm |
| r min | 1mm |
| r1 min | 1mm |
| Dynamic load Cr | 65.7 kN |
| Static load Cor | 94.5 kN |
| Speed in grease | 4600 rpm |
| Speed in oil | 6100 rpm |
| a | 17.7mm |
| da min | 55.5mm |
| db max | 56mm |
| Da max | 74.5mm |
| Da min | 72mm |
| Db min | 77mm |
| Ca min | 4mm |
| Cb min | 4.5mm |
| ra max | 1mm |
| rb max | 1mm |
| e | 0.42 |
| Y1 | 1.42 |
| Y0 | 0.78 |
| Mass | 0.389 kg |
