SKU: 3219A/C3-SKF

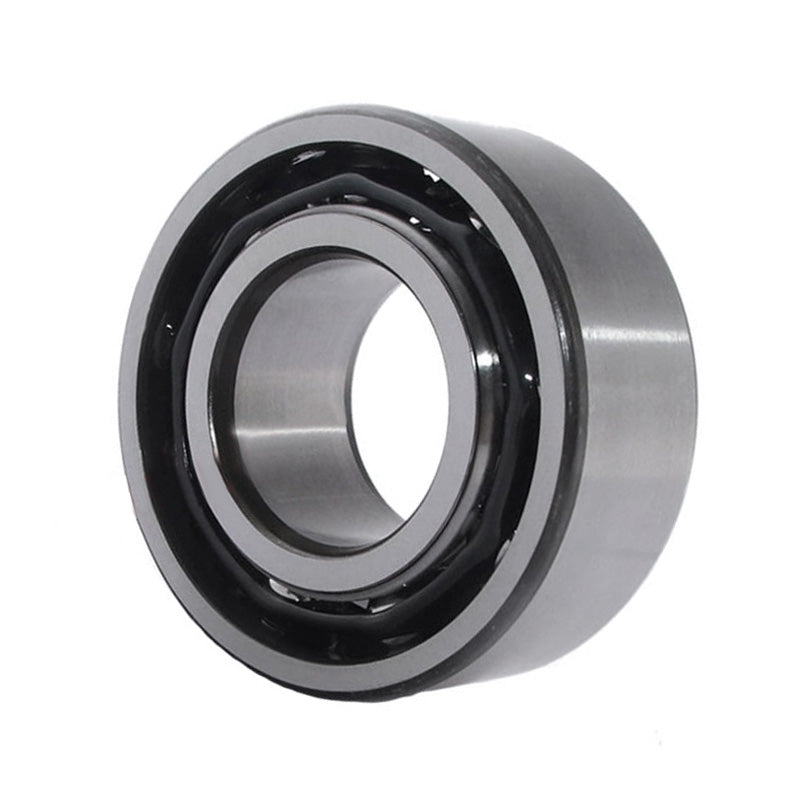

SKF 3219AC3 Double Row Angular Contact Ball Bearing Steel Cage 95x170x55.6mm
SKF 3219AC3 Double Row Angular Contact Ball Bearing Steel Cage 95x170x55.6mm
Regular price
€519,95
ex VAT
Regular price
Sale price
€519,95
ex VAT
Equivalent to: 5219
In stock
Price Break
4+
€395,42
8+
€373,21
12+
€368,76
16+
€364,32
25+
€359,88
50+
€355,44
99+
€333,22
199+
€328,78
249+
€324,34
499+
€319,89
999+
€311,01
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5219
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 55.6mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 55.6mm |
| Dynamic load Cr | 159 kN |
| Static load Cor | 146 kN |
| Fatigue load limit Pu | 5.4 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 3400 rpm |
| Weight | 5 kg |
| d1 | 119mm |
| D1 | 147mm |
| r1r2 min | 2.1mm |
| a | 101mm |
| da min | 107mm |
| Da max | 158mm |
| ra max | 2mm |
