SKU: 32309-CDX

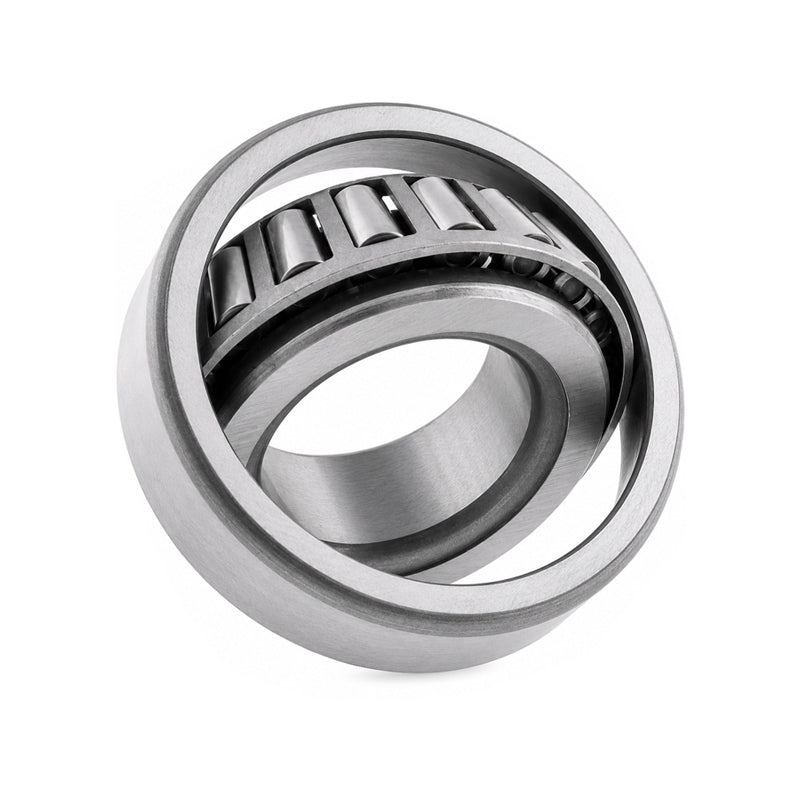

Codex 32309 Metric Single Row Taper Roller Bearing 45x100x38.25mm
Codex 32309 Metric Single Row Taper Roller Bearing 45x100x38.25mm
Regular price
€36,95
ex VAT
Regular price
Sale price
€36,95
ex VAT
In stock
Price Break
10+
€27,41
19+
€25,87
29+
€25,56
39+
€25,26
49+
€24,95
74+
€24,64
99+
€23,10
199+
€22,79
249+
€22,48
499+
€22,18
999+
€21,56
Description
Description
|
Codex Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 38.25mm
- Seals / Shields:
- None
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| T | 38.25mm |
| Dynamic load | 140 kN |
| Static load | 170 kN |
| Fatigue load limit Pu | 20.4 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 7000 rpm |
| Weight | 1.35 kg |
| d1 | 70.4mm |
| B | 36mm |
| C | 30mm |
| r1r2 min | 2mm |
| r3r4 min | 1.5mm |
| a | 25mm |
| da max | 57mm |
| db min | 53mm |
| Da min | 82mm |
| Da max | 91mm |
| Db min | 93mm |
| Ca min | 4mm |
| Cb min | 8mm |
| ra max | 2mm |
| rb max | 1.5mm |
| e | 0.35 |
| Y | 1.7 |
| Y0 | 0.9 |
