Renold Blue Box 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
Renold Blue Box 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
€142,50
ex VAT
Regular price
Sale price
€142,50
ex VAT
In stock
Price Break
10+
€126,83
19+
€119,70
29+
€118,28
39+
€116,85
49+
€115,43
74+
€114,00
99+
€106,88
199+
€105,45
249+
€104,03
499+
€102,60
999+
€99,75
Couldn't load pickup availability
Description
Description

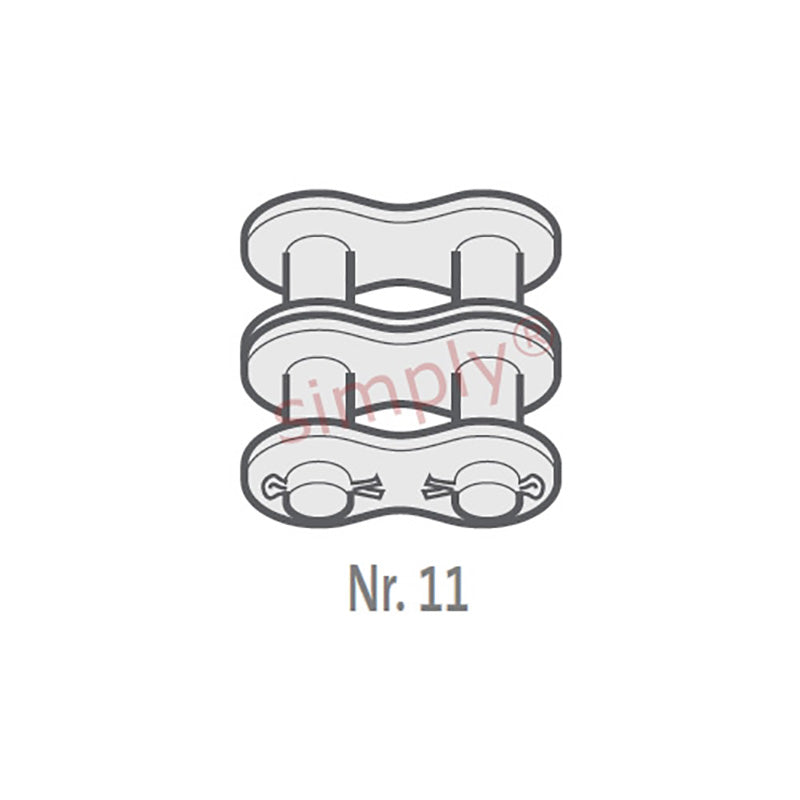

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.29mm |
| Plate Width Inner max (E) | 7.11mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H1) | 122mm |
| Connecting Link Extension max (J) | 8mm |
| ISO606 Tensile Strength min | 450000 N |
| Weight | 0.34kg/m |
