Renold SD 32B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
Renold SD 32B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
€96,53
ex VAT
Regular price
Sale price
€96,53
ex VAT
In stock
Price Break
10+
€85,91
19+
€81,09
29+
€80,12
39+
€79,15
49+
€78,19
74+
€77,22
99+
€72,40
199+
€71,43
249+
€70,47
499+
€69,50
999+
€67,57
Couldn't load pickup availability
Description
Description

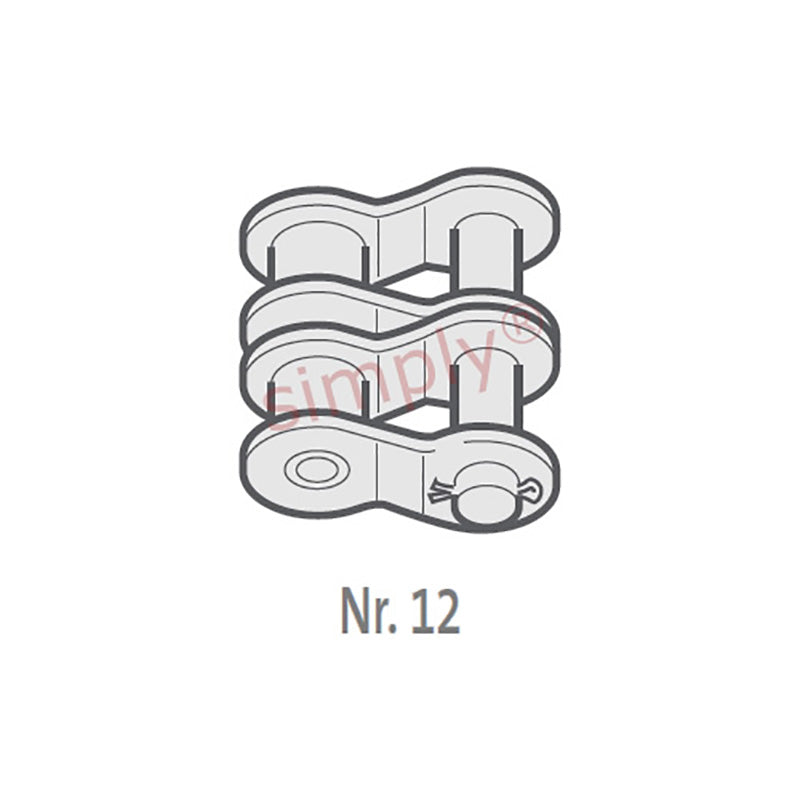

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.1mm |
| Plate Width Inner max (E) | 7.1mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H2) | 124.6mm |
| Connecting Link Extension max (J) | 5mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 450000 N |
| Weight | 0.34kg/m |
