Renold Blue Box 32B-3-NO11 BS Triplex Chain Cottered Connecting Link 2 inch Pitch
Renold Blue Box 32B-3-NO11 BS Triplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
€219,95
ex VAT
Regular price
Sale price
€219,95
ex VAT
In stock
Price Break
2+
€167,02
5+
€157,63
10+
€155,76
29+
€153,88
49+
€152,00
75+
€150,13
100+
€140,74
200+
€138,87
250+
€136,99
500+
€135,11
1000+
€131,36
Description
Description

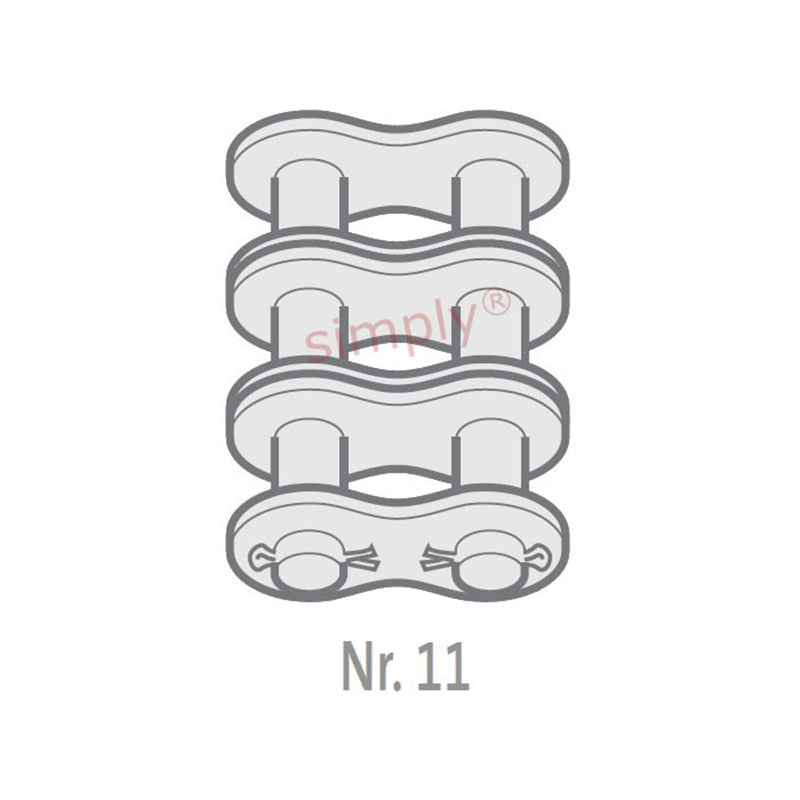

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.29mm |
| Plate Width Inner max (E) | 7.11mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H2) | 180.5mm |
| Connecting Link Extension max (J) | 8mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 670000 N |
| Weight | 0.34kg/m |
