SKU: 32B-3-SD-NO11-RENOLD
Renold SD 32B-3-NO11 BS Triplex Chain Cottered Connecting Link 2 inch Pitch
Renold SD 32B-3-NO11 BS Triplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
€82,00
ex VAT
Regular price
Sale price
€82,00
ex VAT
In stock
Price Break
10+
€72,98
19+
€68,88
29+
€68,06
39+
€67,24
49+
€66,42
74+
€65,60
99+
€61,50
199+
€60,68
249+
€59,86
499+
€59,04
999+
€57,40
Couldn't load pickup availability
Description
Description

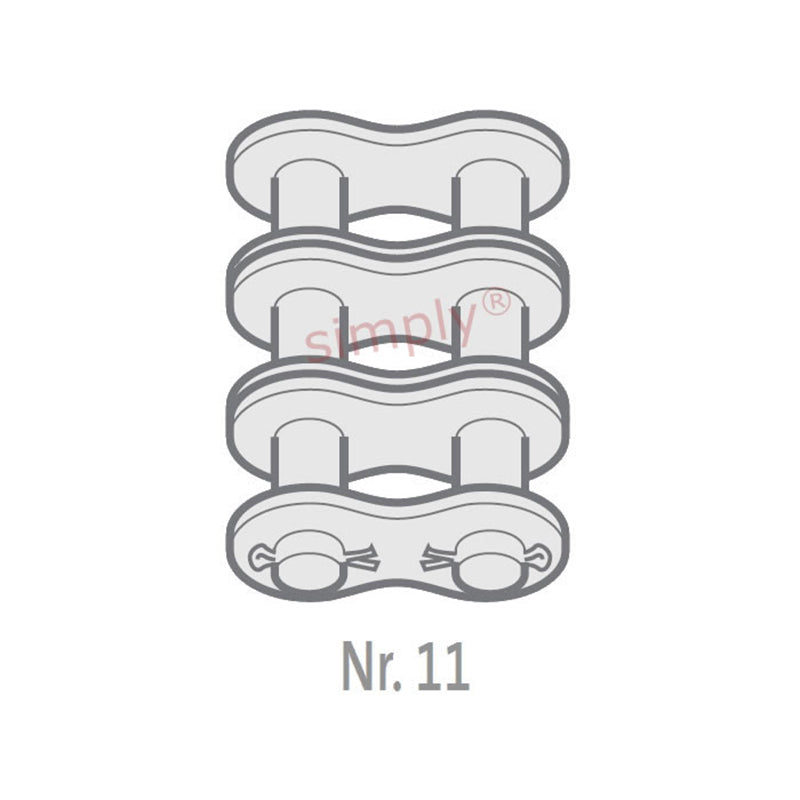

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.1mm |
| Plate Width Inner max (E) | 7.1mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H1) | 179.4mm |
| Connecting Link Extension max (J) | 14.4mm |
| ISO606 Tensile Strength min | 725000 N |
| Weight | 0.5kg/m |
