SKU: 367L-075-98

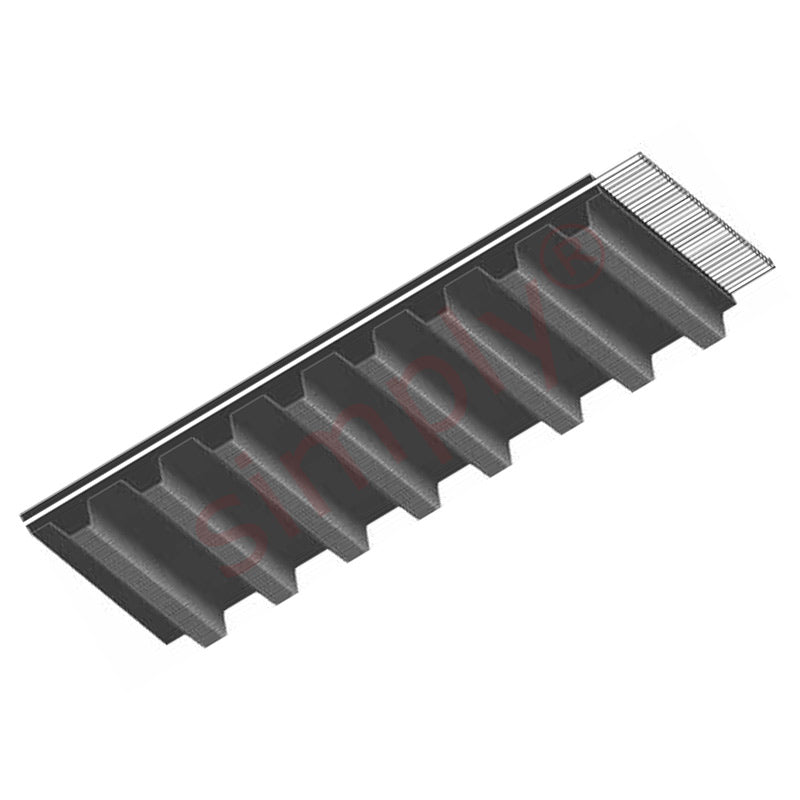

Major Brand 367L075 Synchronous Toothed Belt 0.75 inch Wide 36.75 inch Length 98 Teeth
Major Brand 367L075 Synchronous Toothed Belt 0.75 inch Wide 36.75 inch Length 98 Teeth
Regular price
€11,95
ex VAT
Regular price
Sale price
€11,95
ex VAT
In stock
Price Break
3+
€9,05
5+
€8,54
10+
€8,44
15+
€8,33
20+
€8,23
30+
€8,13
40+
€7,62
50+
€7,52
60+
€7,42
75+
€7,32
100+
€7,11
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 19.05mm = 3/4 inch
- Belt Depth Approx:
- 3.6mm
- Belt Length Approx:
- 933.45mm = 36.75 inch
- Number of Teeth:
- 98
Technical
Technical
| Belt width | 0.75 inch = 19.05mm |
|---|---|
| Pitch length | 36.75 inch = 933.45mm |
| Number of teeth | 98 |
| Tooth pitch t | 0.375 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.07519685 inch |
| Pitch zone u | 0.015 inch |
