Renold SD 40-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Renold SD 40-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
In stock
Price Break
2+
€7,65
5+
€7,22
10+
€7,13
29+
€7,04
49+
€6,96
75+
€6,87
100+
€6,44
200+
€6,36
250+
€6,27
500+
€6,18
1000+
€6,01
Description
Description

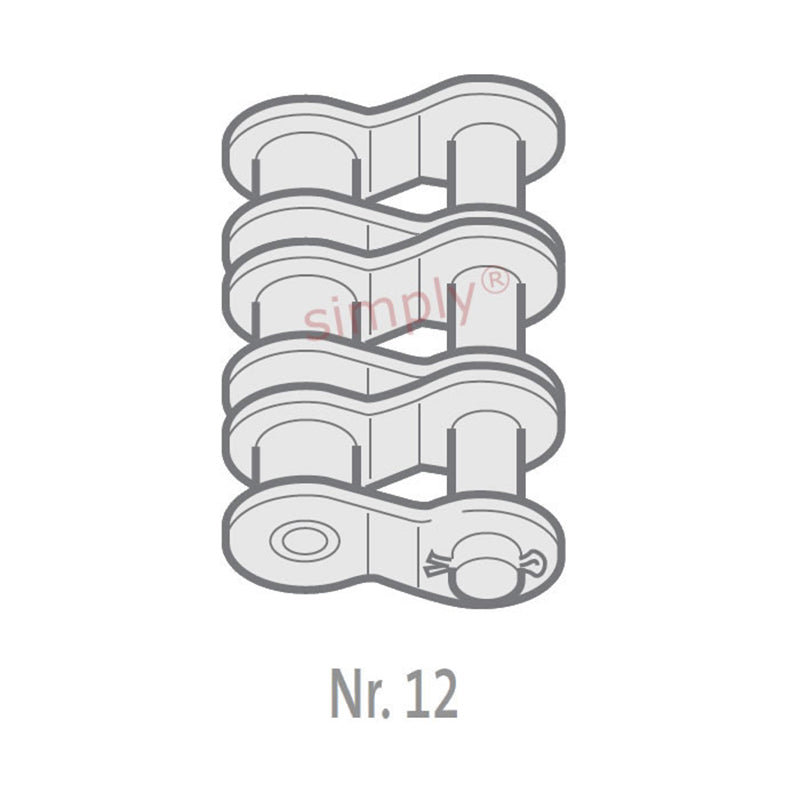

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H1) | 45.2mm |
| Connecting Link Extension max (J) | 3.45mm |
| ISO606 Tensile Strength min | 41700 N |
| Weight | 14.38kg/m |
