SKU: 4580/2/4535/2/Q-SKF

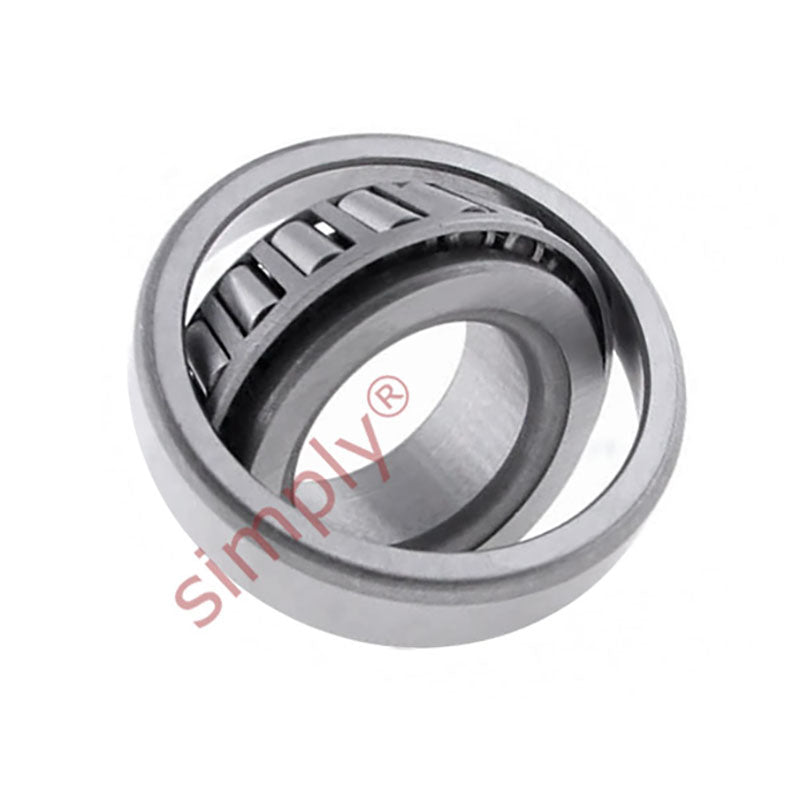

SKF 4580/2/4535/2/Q Imperial Taper Roller Bearing 2x4.125x1.5625 inches

Name: SKF 4580/2/4535/2/Q Imperial Taper Roller Bearing 2x4.125x1.5625 inches
Brand: SKF
SKU: 4580/2/4535/2/Q-SKF
Price: 211.95 EUR
Availability: InStock

€211,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €161,39

19+ €152,32

29+ €150,51

39+ €148,69

49+ €146,88

74+ €145,07

99+ €136,00

199+ €134,19

249+ €132,37

499+ €130,56

999+ €126,93

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50.8mm = 2 inch
Outside Diameter:: 104.78mm = 4.125 (4-1/8) inch
Width:: 39.69mm = 1.563 (1-9/16) inch
Seals / Shields:: None

Technical

d	50.8mm
D	104.775mm
T	39.688mm
Dynamic load	157 kN
Static load	224 kN
Fatigue load limit Pu	25.5 kN
Reference speed	4800 rpm
Limiting speed	7000 rpm
Weight	1.65 kg
d1	79.5mm
B	40.157mm
C	33.338mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	27mm
da max	65mm
db min	62mm
Da min	87mm
Da max	92.5mm
Db min	98mm
Ca min	5mm
Cb min	6mm
ra max	3mm
rb max	3mm
Calculation factor e	0.33
Calculation factor Y	1.8
Calculation factor Y0	1
