SKU: 50-1-BB-NO11-RENOLD
Renold Blue Box 50-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 5/8 inch Pitch
Renold Blue Box 50-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 5/8 inch Pitch
Regular price
€7,59
ex VAT
Regular price
Sale price
€7,59
ex VAT
In stock
Price Break
10+
€6,76
19+
€6,38
29+
€6,30
39+
€6,22
49+
€6,15
74+
€6,07
99+
€5,69
199+
€5,62
249+
€5,54
499+
€5,46
999+
€5,31
Couldn't load pickup availability
Description
Description

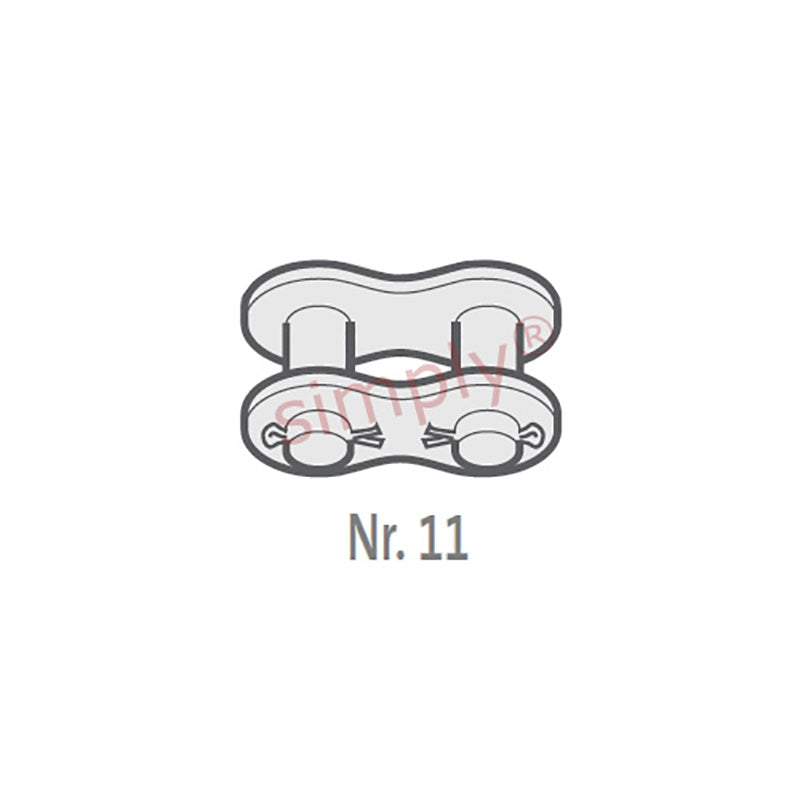

| Renold No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 20.4mm |
| Connecting Link Extension max (J) | 2.7mm |
| ISO606 Tensile Strength min | 21800 N |
| Weight | 0.015kg/m |
