SKU: 50-2-SD-NO12-RENOLD
Renold SD 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold SD 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
2+
€9,74
5+
€9,19
10+
€9,08
29+
€8,97
49+
€8,87
75+
€8,76
100+
€8,21
200+
€8,10
250+
€7,99
500+
€7,88
1000+
€7,66
Description
Description

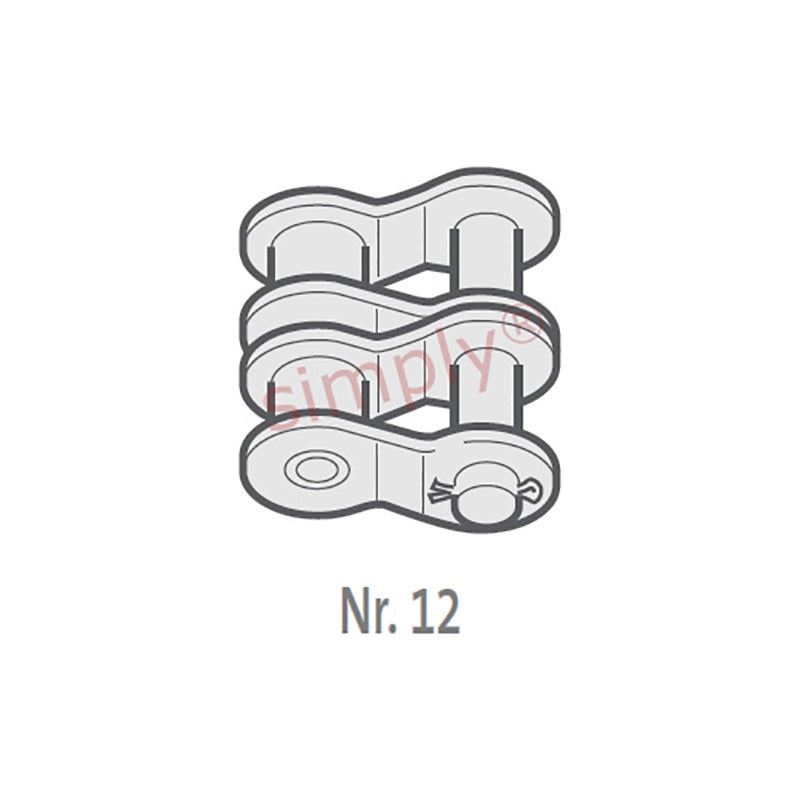

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 39mm |
| Connecting Link Extension max (J) | 1.3mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 43600 N |
| Weight | 0.01kg/m |
