SKU: 50-3-BB-NO12-RENOLD
Renold Blue Box 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold Blue Box 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
€35,30
ex VAT
Regular price
Sale price
€35,30
ex VAT
In stock
Price Break
10+
€31,42
19+
€29,65
29+
€29,30
39+
€28,95
49+
€28,59
74+
€28,24
99+
€26,48
199+
€26,12
249+
€25,77
499+
€25,42
999+
€24,71
Couldn't load pickup availability
Description
Description

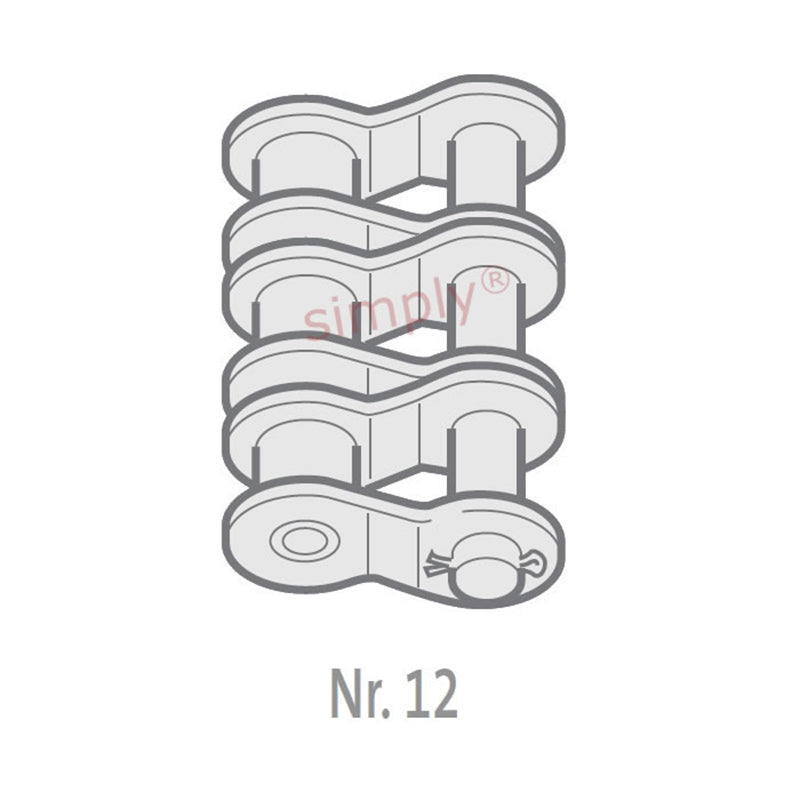

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 56.5mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 0.025kg/m |
