SKU: 51112.MB

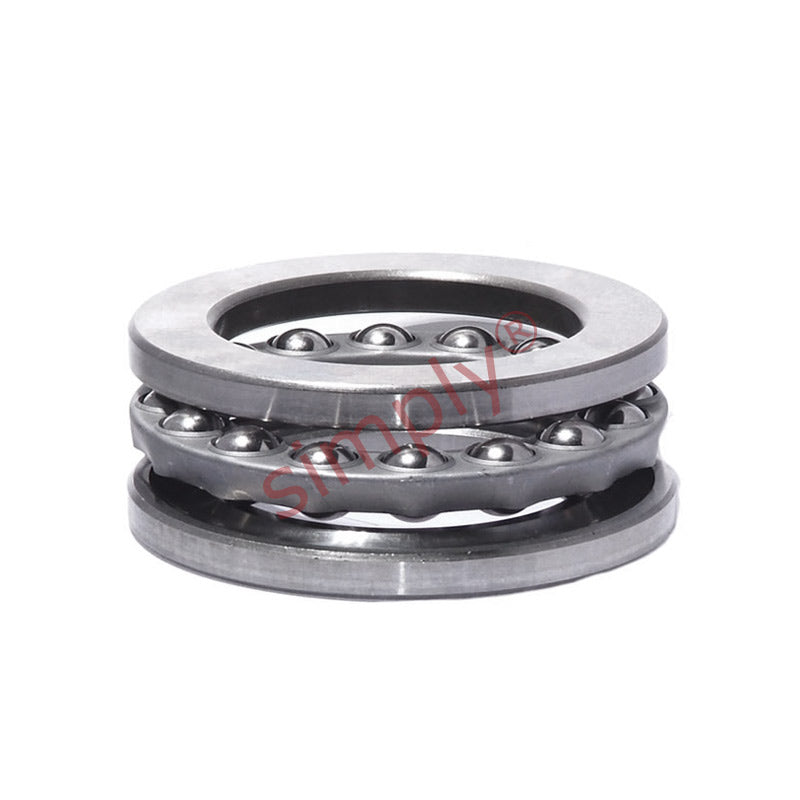

51112 Thrust Ball Bearing 60x85x17mm
51112 Thrust Ball Bearing 60x85x17mm
Regular price
€29,95
ex VAT
Regular price
Sale price
€29,95
ex VAT
In stock
Price Break
10+
€22,73
19+
€21,45
29+
€21,20
39+
€20,94
49+
€20,69
74+
€20,43
99+
€19,15
199+
€18,90
249+
€18,64
499+
€18,39
999+
€17,88
Share this product
Description
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 17mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| H | 17mm |
| Dynamic load C | 41.6 kN |
| Static load Co | 122 kN |
| Fatigue load limit Pu | 4.55 kN |
| Minimum load factor A | 0.077 |
| Reference speed | 3600 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.2 kg |
| d1 | 85mm |
| D1 | 62mm |
| r1r2 min | 1mm |
| da min | 75mm |
| Da max | 70mm |
| ra max | 1mm |
