SKU: 51122-CDX

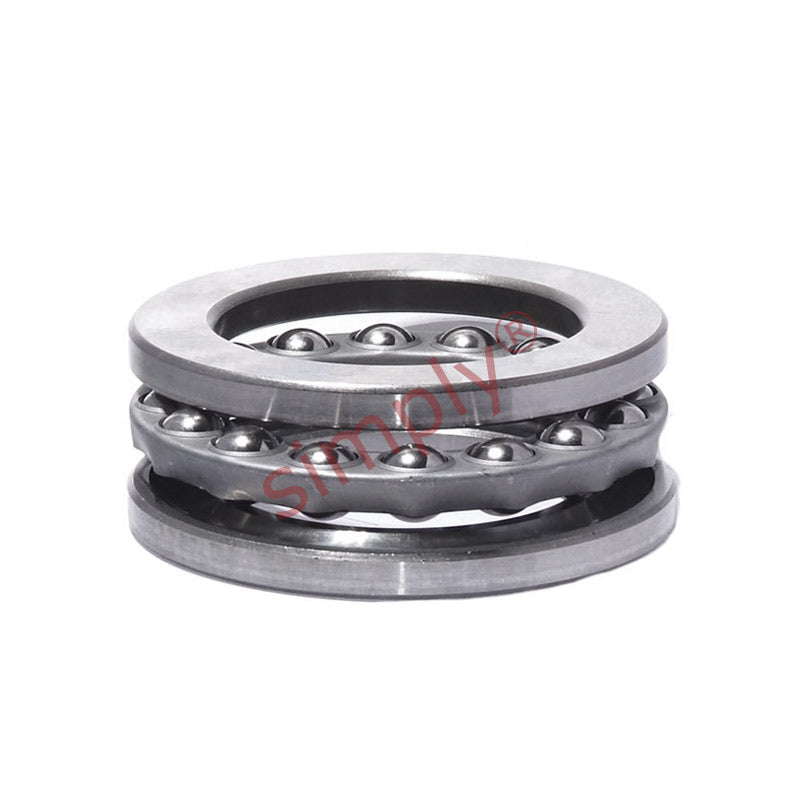

Codex 51122 Single Thrust Ball Bearing 110x145x25mm
Codex 51122 Single Thrust Ball Bearing 110x145x25mm
Regular price
€104,06
ex VAT
Regular price
Sale price
€104,06
ex VAT
In stock
Price Break
10+
€92,61
19+
€87,41
29+
€86,37
39+
€85,33
49+
€84,29
74+
€83,25
99+
€78,05
199+
€77,00
249+
€75,96
499+
€74,92
999+
€72,84
Couldn't load pickup availability
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 145mm
- Width:
- 25mm
Technical
Technical
| d | 110 |
|---|---|
| D | 145 |
| H | 25 |
| Dynamic Load | 87.1 kN |
| Static Load | 315 kN |
| Pu | 10.2 |
| A | 0.52 |
| Ref Speed | 2200 rpm |
| Limiting Speed | 3200 rpm |
| kg | 1.05 |
| d1 | 145 |
| D1 | 112 |
| r1r2 min | 1 |
| da min | 131 |
| Da max | 124 |
| ra max | 1 |
