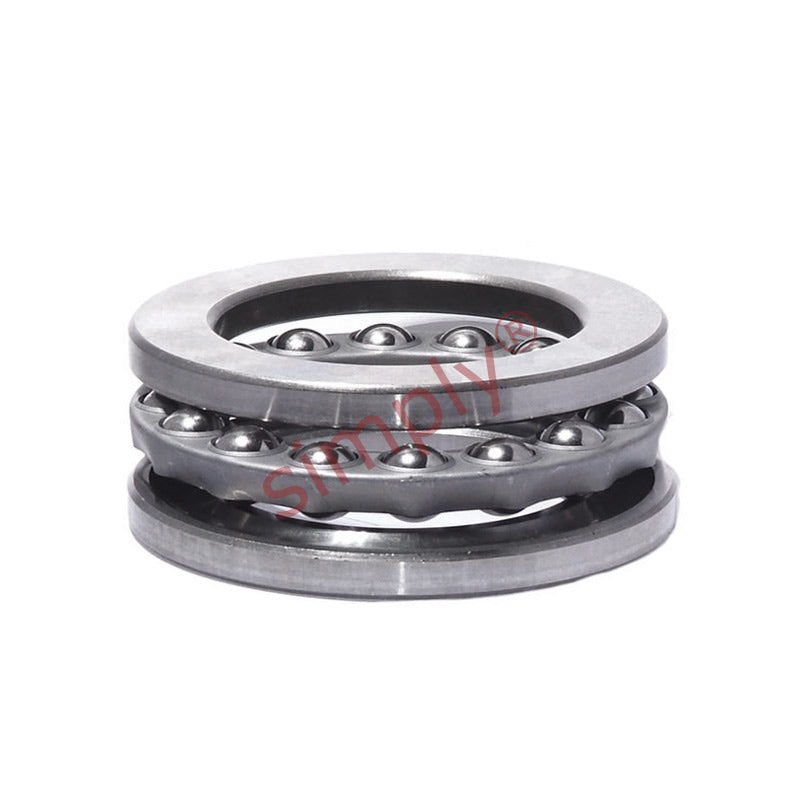

SKF 51211 Single Thrust Ball Bearing 55x90x25mm
SKF 51211 Single Thrust Ball Bearing 55x90x25mm
Regular price
€65,95
ex VAT
Regular price
Sale price
€65,95
ex VAT
In stock
Price Break
10+
€49,95
19+
€47,15
29+
€46,59
39+
€46,03
49+
€45,46
74+
€44,90
99+
€42,10
199+
€41,54
249+
€40,97
499+
€40,41
999+
€39,29
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 25mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| H | 25mm |
| Dynamic load C | 61.8 kN |
| Static load Co | 146 kN |
| Fatigue load limit Pu | 5.4 kN |
| Minimum load factor A | 0.11 |
| Reference speed | 2800 rpm |
| Limiting speed | 4000 rpm |
| Weight | 0.59 kg |
| d1 | 90mm |
| D1 | 57mm |
| r1r2 min | 1mm |
| da min | 76mm |
| Da max | 69mm |
| ra max | 1mm |
