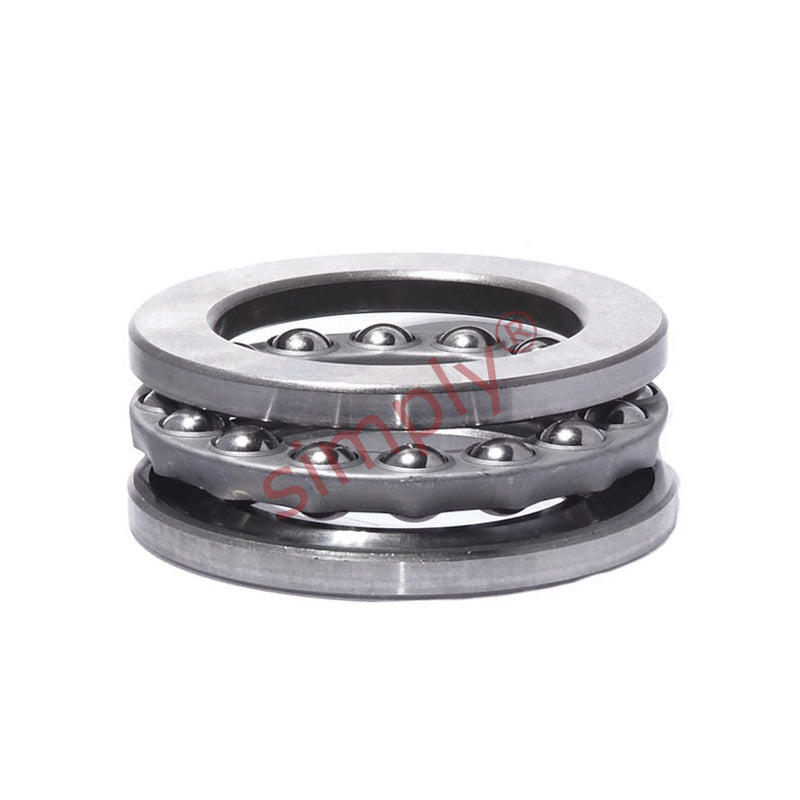

• SKF 51226 Single Thrust Ball Bearing 130x190x45mm
1 1

SKU: 51226-SKF

SKF 51226 Single Thrust Ball Bearing 130x190x45mm

SKF 51226 Single Thrust Ball Bearing 130x190x45mm
€449,95 ex VAT
€449,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €342,50
19+ €323,25
29+ €319,41
39+ €315,56
49+ €311,71
74+ €307,86
99+ €288,62
199+ €284,77
249+ €280,92
499+ €277,07
999+ €269,38
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
130mm
Outside Diameter:
190mm
Width:
45mm
Technical
d 130mm
D 190mm
H 45mm
Dynamic load C 186 kN
Static load Co 585 kN
Fatigue load limit Pu 17 kN
Minimum load factor A 1.8
Reference speed 1400 rpm
Limiting speed 2000 rpm
Weight 4 kg
d1 187mm
D1 133mm
r1r2 min 1.5mm
da min 166mm
Da max 154mm
ra max 1.5mm
