SKU: 51332M-SKF

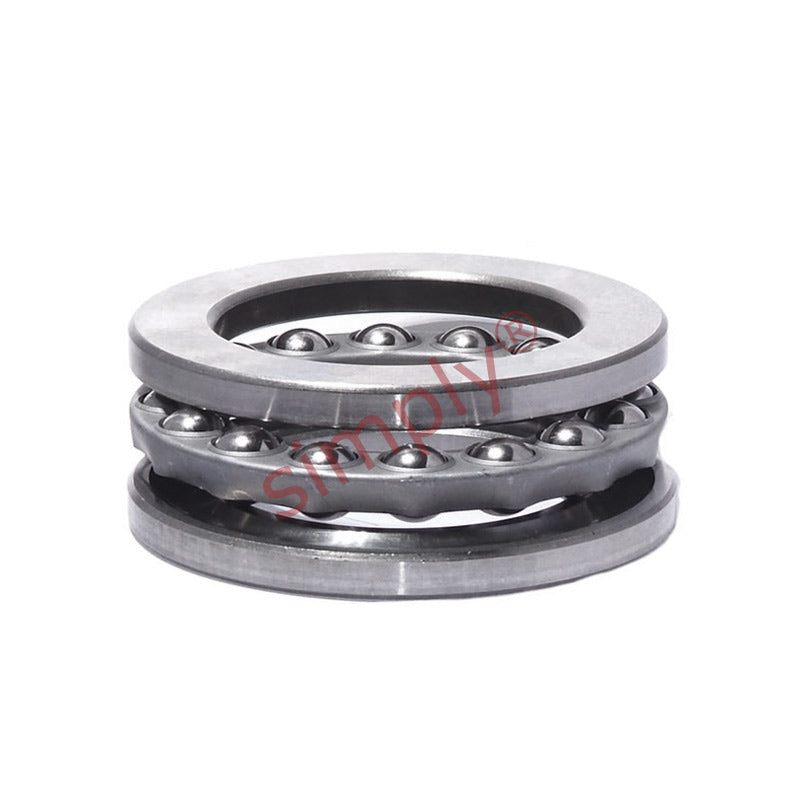

SKF 51332M Single Thrust Ball Bearing 160x270x87mm
SKF 51332M Single Thrust Ball Bearing 160x270x87mm
Regular price
€2.639,95
ex VAT
Regular price
Sale price
€2.639,95
ex VAT
In stock
Price Break
10+
€2.009,85
19+
€1.896,94
29+
€1.874,36
39+
€1.851,78
49+
€1.829,19
74+
€1.806,61
99+
€1.693,70
199+
€1.671,11
249+
€1.648,53
499+
€1.625,95
999+
€1.580,78
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 270mm
- Width:
- 87mm
Technical
Technical
| d | 160mm |
|---|---|
| D | 270mm |
| H | 87mm |
| Dynamic load C | 449 kN |
| Static load Co | 1660 kN |
| Fatigue load limit Pu | 41.5 kN |
| Minimum load factor A | 14 |
| Reference speed | 850 rpm |
| Limiting speed | 1200 rpm |
| Weight | 21 kg |
| d1 | 265mm |
| D1 | 164mm |
| r1r2 min | 3mm |
| da min | 225mm |
| Da max | 205mm |
| ra max | 2.5mm |
