SKU: 51410-SKF

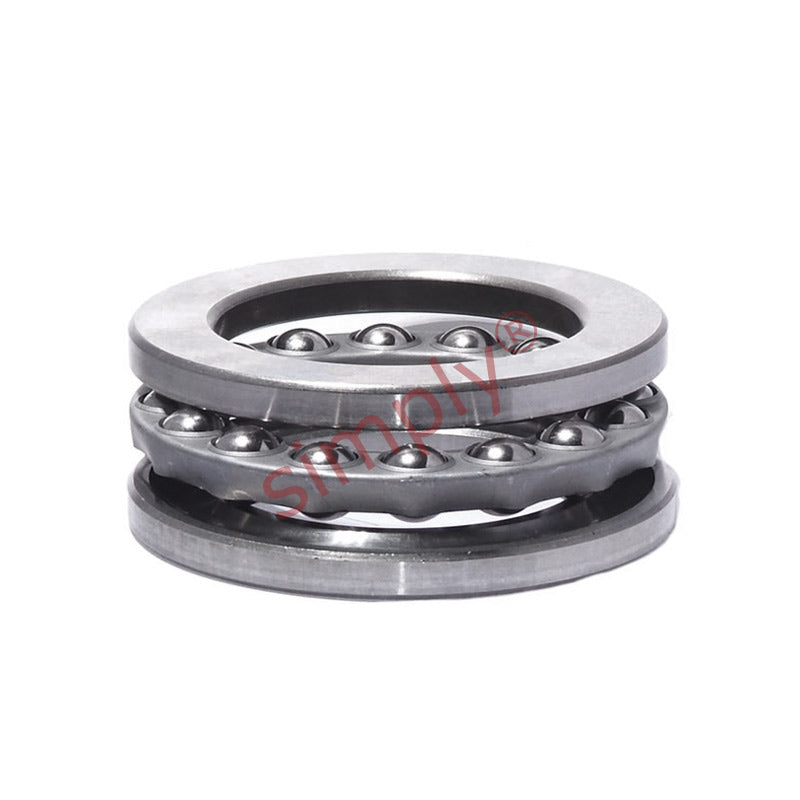

SKF 51410 Single Thrust Ball Bearing 50x110x43mm
SKF 51410 Single Thrust Ball Bearing 50x110x43mm
Regular price
€182,95
ex VAT
Regular price
Sale price
€182,95
ex VAT
In stock
Price Break
10+
€138,71
19+
€130,92
29+
€129,36
39+
€127,80
49+
€126,24
74+
€124,68
99+
€116,89
199+
€115,33
249+
€113,77
499+
€112,21
999+
€109,10
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 43mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| H | 43mm |
| Dynamic load C | 159 kN |
| Static load Co | 340 kN |
| Fatigue load limit Pu | 12.5 kN |
| Minimum load factor A | 0.6 |
| Reference speed | 2000 rpm |
| Limiting speed | 2800 rpm |
| Weight | 2 kg |
| d1 | 110mm |
| D1 | 52mm |
| r1r2 min | 1.5mm |
| da min | 86mm |
| Da max | 74mm |
| ra max | 1.5mm |
