• SKF 51411 Single Thrust Ball Bearing 55x120x48mm
1 1

SKU: 51411-SKF

SKF 51411 Single Thrust Ball Bearing 55x120x48mm

SKF 51411 Single Thrust Ball Bearing 55x120x48mm
€404,95 ex VAT
€404,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €307,92
19+ €290,62
29+ €287,16
39+ €283,70
49+ €280,24
74+ €276,79
99+ €259,49
199+ €256,03
249+ €252,57
499+ €249,11
999+ €242,19
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

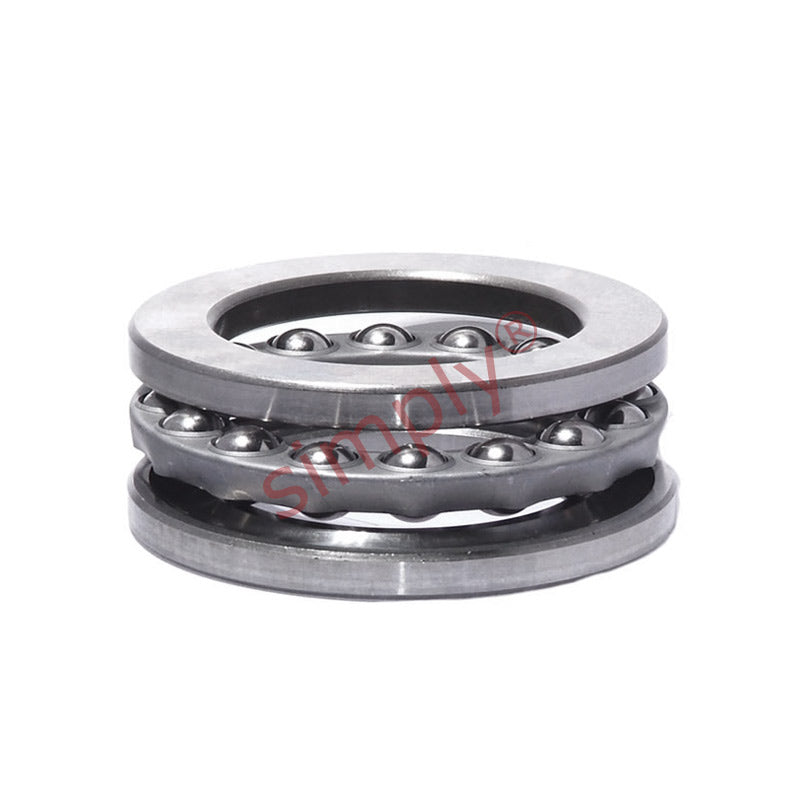

SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
55mm
Outside Diameter:
120mm
Width:
48mm
Technical
d 55mm
D 120mm
H 48mm
Dynamic load C 178 kN
Static load Co 390 kN
Fatigue load limit Pu 14.3 kN
Minimum load factor A 0.79
Reference speed 1800 rpm
Limiting speed 2400 rpm
Weight 2.55 kg
d1 120mm
D1 57mm
r1r2 min 1.5mm
da min 94mm
Da max 81mm
ra max 1.5mm
