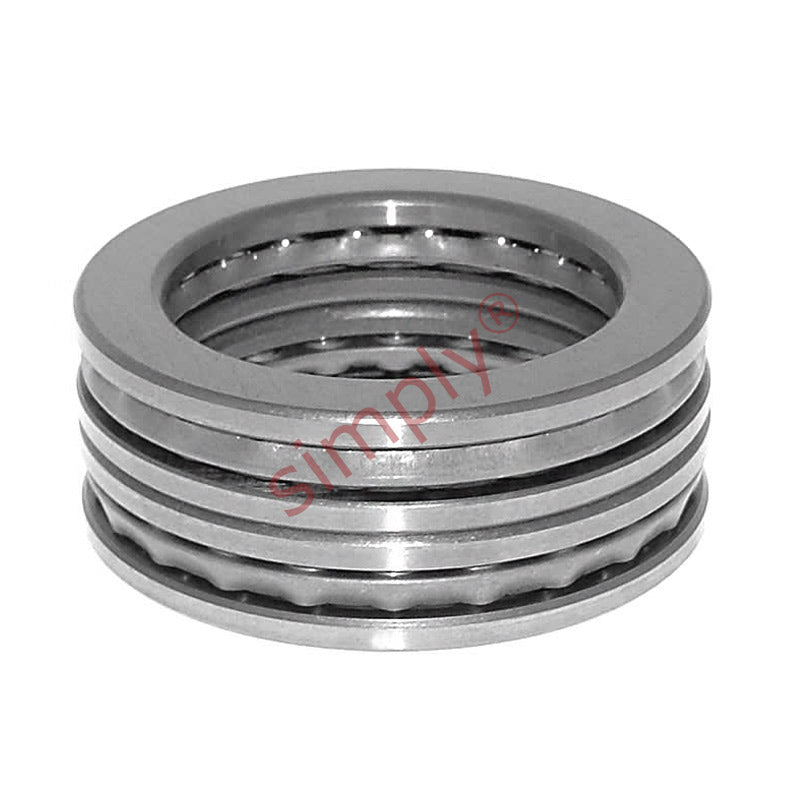

• SKF 52211 Double Thrust Ball Bearing with Flat Seats 45x90x45mm
1 1

SKU: 52211-SKF

SKF 52211 Double Thrust Ball Bearing with Flat Seats 45x90x45mm

SKF 52211 Double Thrust Ball Bearing with Flat Seats 45x90x45mm
€132,95 ex VAT
€132,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €101,21
19+ €95,53
29+ €94,39
39+ €93,25
49+ €92,11
74+ €90,98
99+ €85,29
199+ €84,15
249+ €83,02
499+ €81,88
999+ €79,60
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Outside Diameter:
90mm
Width:
45mm
Technical
d 45mm
D 90mm
H 45mm
Dynamic load C 61.8 kN
Static load Co 146 kN
Fatigue load limit Pu 5.4 kN
Minimum load factor A 0.11
Reference speed 2800 rpm
Limiting speed 4000 rpm
Weight 1.1 kg
D1 57mm
B 10mm
r1r2 1mm
r3r4 0.6mm
da 55mm
Da max 69mm
ra max 1mm
rb max 0.6mm
