SKU: 52308-SKF

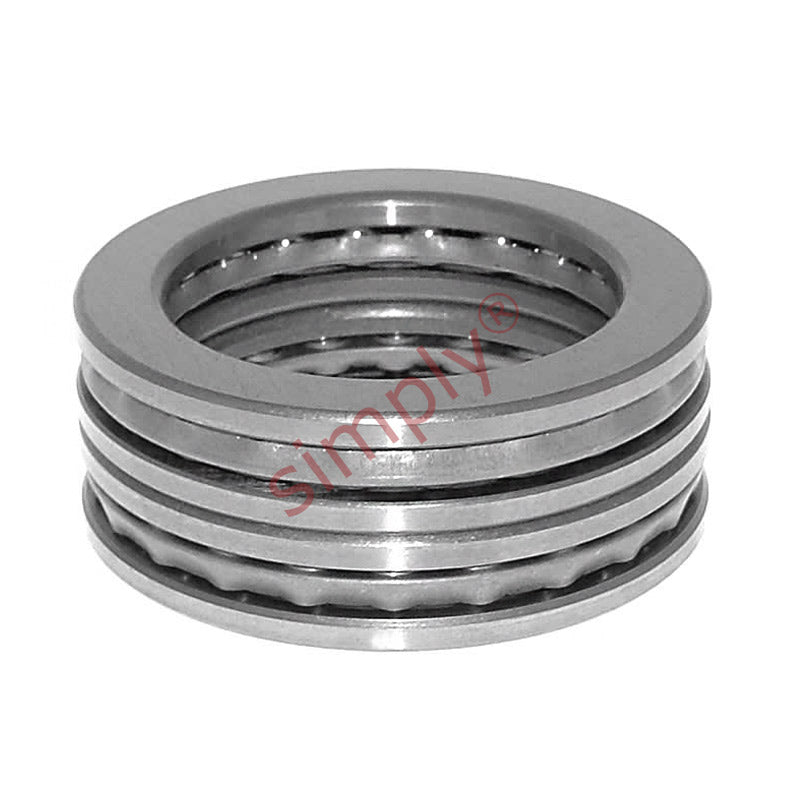

SKF 52308 Double Thrust Ball Bearing with Flat Seats 30x78x49mm
SKF 52308 Double Thrust Ball Bearing with Flat Seats 30x78x49mm
Regular price
€140,95
ex VAT
Regular price
Sale price
€140,95
ex VAT
In stock
Price Break
10+
€106,67
19+
€100,68
29+
€99,48
39+
€98,28
49+
€97,08
74+
€95,88
99+
€89,89
199+
€88,69
249+
€87,49
499+
€86,29
999+
€83,90
Share this product
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 78mm
- Width:
- 49mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 78mm |
| H | 49mm |
| Dynamic load C | 61.8 kN |
| Static load Co | 122 kN |
| Fatigue load limit Pu | 4.5 kN |
| Minimum load factor A | 0.077 |
| Reference speed | 3000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 1.05 kg |
| D1 | 42mm |
| B | 12mm |
| r1r2 | 1mm |
| r3r4 | 0.6mm |
| da | 40mm |
| Da max | 55mm |
| ra max | 1mm |
| rb max | 0.6mm |
