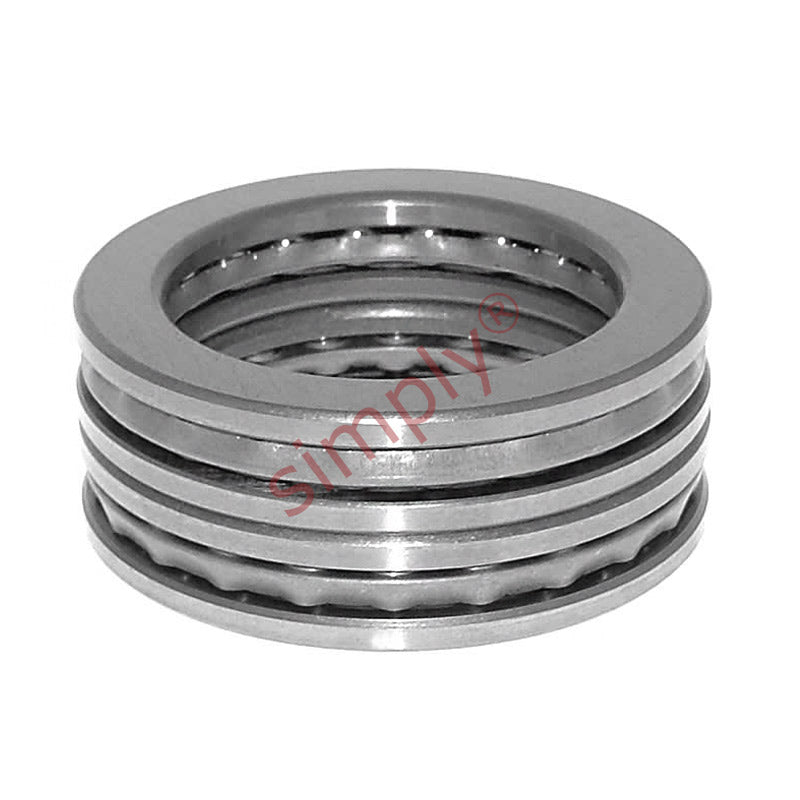

• SKF 52310 Double Thrust Ball Bearing with Flat Seats 40x95x58mm
1 1

SKU: 52310-SKF

SKF 52310 Double Thrust Ball Bearing with Flat Seats 40x95x58mm

SKF 52310 Double Thrust Ball Bearing with Flat Seats 40x95x58mm
€216,95 ex VAT
€216,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €165,17
19+ €155,89
29+ €154,03
39+ €152,18
49+ €150,32
74+ €148,47
99+ €139,19
199+ €137,33
249+ €135,48
499+ €133,62
999+ €129,91
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
40mm
Outside Diameter:
95mm
Width:
58mm
Technical
d 40mm
D 95mm
H 58mm
Dynamic load C 88.4 kN
Static load Co 190 kN
Fatigue load limit Pu 6.95 kN
Minimum load factor A 0.19
Reference speed 2600 rpm
Limiting speed 3600 rpm
Weight 1.75 kg
D1 52mm
B 14mm
r1r2 1.1mm
r3r4 0.6mm
da 50mm
Da max 68mm
ra max 1mm
rb max 0.6mm
