SKU: 52314-EU
52314 Budget Double Thrust Ball Bearing with Flat Seats 55x125x72mm
52314 Budget Double Thrust Ball Bearing with Flat Seats 55x125x72mm
Regular price
€465,62
ex VAT
Regular price
Sale price
€465,62
ex VAT
In stock
Price Break
10+
€414,40
19+
€391,12
29+
€386,46
39+
€381,81
49+
€377,15
74+
€372,50
99+
€349,22
199+
€344,56
249+
€339,90
499+
€335,25
999+
€325,93
Couldn't load pickup availability
Description
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 125mm
- Width:
- 72mm
Technical
Technical

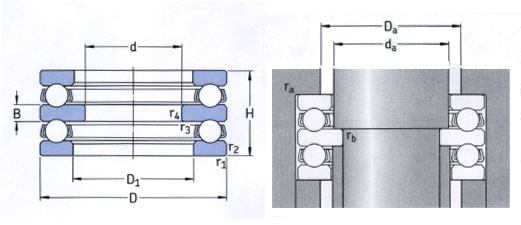

| d | 55mm |
|---|---|
| D | 125mm |
| H | 72mm |
| Dynamic load C | 135 kN |
| Static load Co | 320 kN |
| Fatigue load Pu | 11.8 kN |
| Minimum load factor A | 0.53 |
| Reference speed | 1900 rpm |
| Limiting speed | 2600 rpm |
| Weight | 3.65 kg |
| D1 | 72mm |
| B | 16mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1mm |
| da | 70mm |
| Da max | 92mm |
| ra max | 1mm |
| rb max | 1mm |
