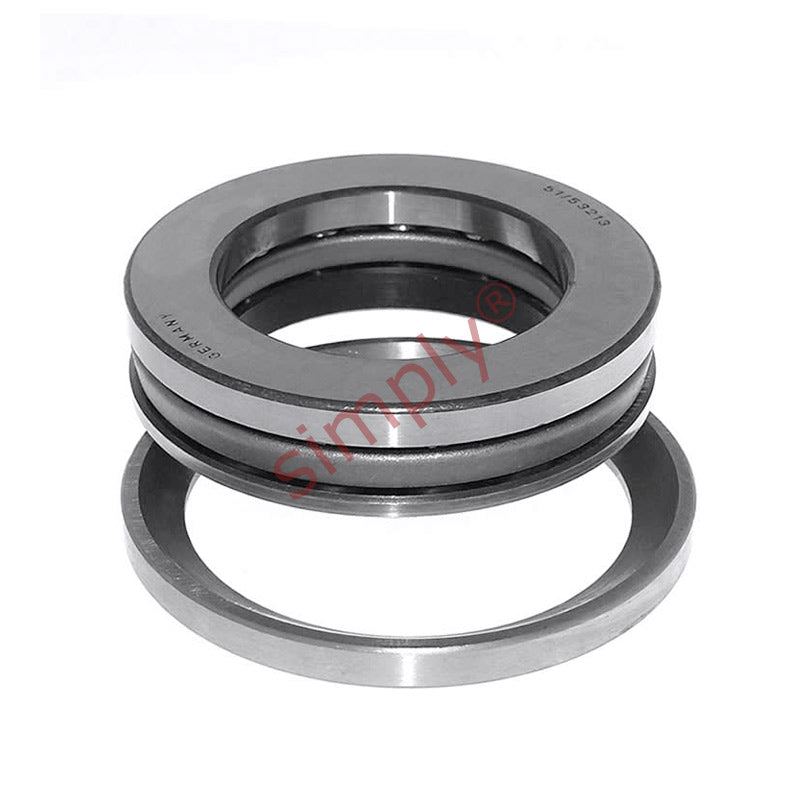

53209 Budget Single Thrust Ball Bearing with Spherical Housing Seat U209 45x73x24mm
53209 Budget Single Thrust Ball Bearing with Spherical Housing Seat U209 45x73x24mm
Regular price
€42,95
ex VAT
Regular price
Sale price
€42,95
ex VAT
In stock
Price Break
10+
€32,38
19+
€30,56
29+
€30,20
39+
€29,83
49+
€29,47
74+
€29,11
99+
€27,29
199+
€26,92
249+
€26,56
499+
€26,20
999+
€25,47
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 73mm
- Width:
- 24mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 73mm |
| H1 | 24mm |
| Dynamic load C | 39 kN |
| Static load Co | 86.5 kN |
| Fatigue load limit Pu | 3.2 kN |
| Minimum load factor A | 0.038 |
| Reference speed | 3600 rpm |
| Limiting Speed | 5000 rpm |
| Weight | 0.39 kg |
| Seating Washer | U209 |
| d1 | 73mm |
| D1 | 47mm |
| D2 | 60mm |
| D3 | 78mm |
| H | 21.3mm |
| C | 7.5mm |
| R | 56mm |
| s | 26mm |
| r1r2 min | 1mm |
| da max | 62mm |
| Da max | 60mm |
| ra max | 1mm |
