53212 Budget Single Thrust Ball Bearing with Spherical Housing Seat U212 60x95x31mm
53212 Budget Single Thrust Ball Bearing with Spherical Housing Seat U212 60x95x31mm
Regular price
€67,95
ex VAT
Regular price
Sale price
€67,95
ex VAT
In stock
Price Break
10+
€51,37
19+
€48,48
29+
€47,90
39+
€47,33
49+
€46,75
74+
€46,17
99+
€43,29
199+
€42,71
249+
€42,13
499+
€41,56
999+
€40,40
Share this product
Description
Description
|

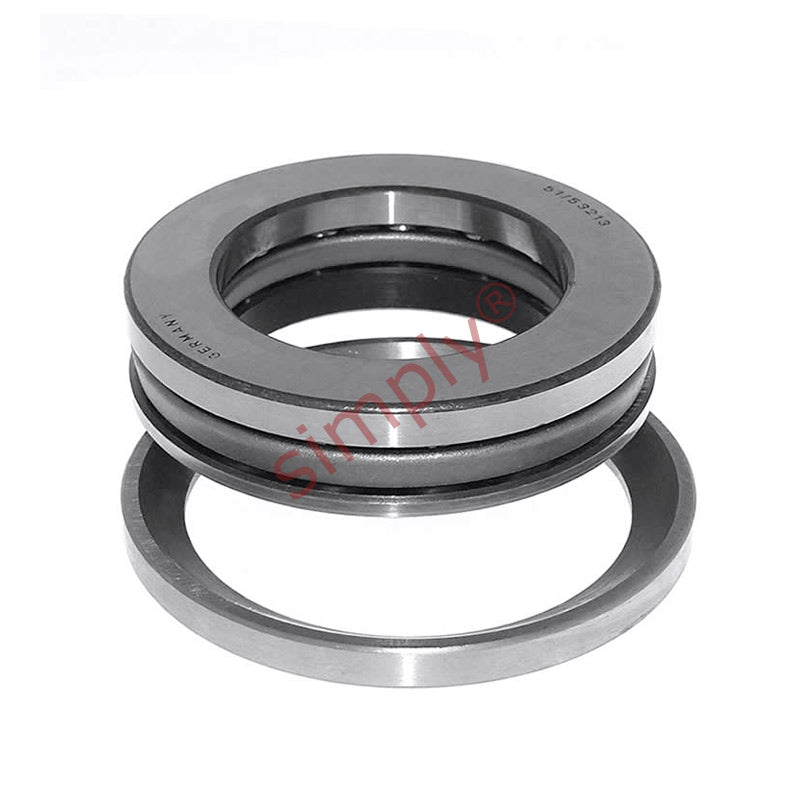

Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 31mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| H1 | 31mm |
| Dynamic load C | 62.4 kN |
| Static load Co | 150 kN |
| Fatigue load limit Pu | 5.6 kN |
| Minimum load factor A | 0.12 |
| Reference speed | 2800 rpm |
| Limiting Speed | 3800 rpm |
| Weight | 0.82 kg |
| Seating Washer | U212 |
| d1 | 95mm |
| D1 | 62mm |
| D2 | 78mm |
| D3 | 100mm |
| H | 28.02mm |
| C | 9mm |
| R | 72mm |
| s | 32.5mm |
| r1r2 min | 1mm |
| da max | 81mm |
| Da max | 78mm |
| ra max | 1mm |
