SKU: 53215?EU

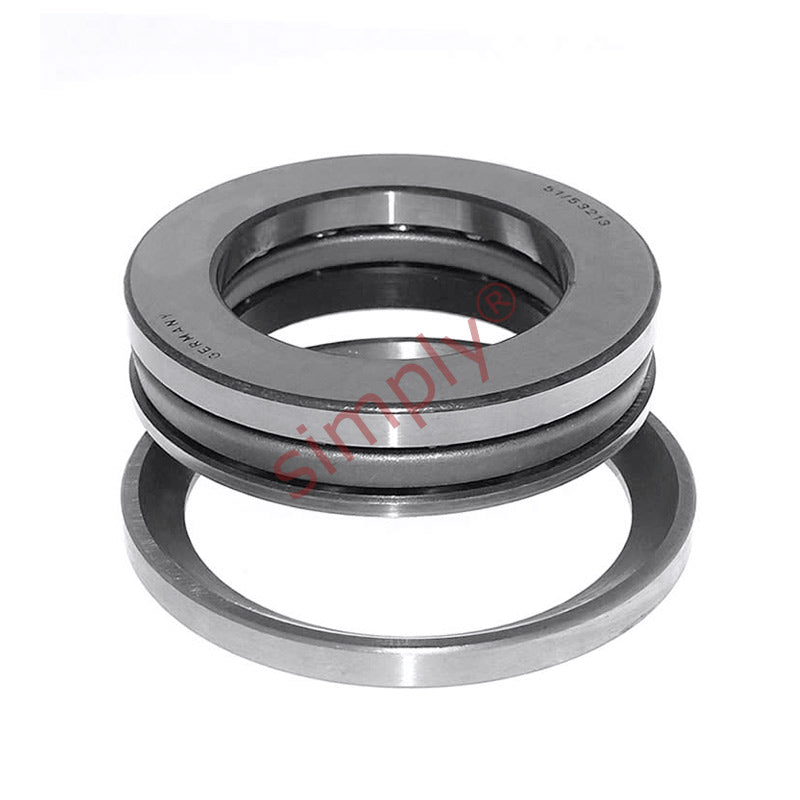

53215 Budget Single Thrust Ball Bearing with Spherical Housing Seat U215 75x110x32mm
53215 Budget Single Thrust Ball Bearing with Spherical Housing Seat U215 75x110x32mm
Regular price
€99,95
ex VAT
Regular price
Sale price
€99,95
ex VAT
In stock
Price Break
10+
€75,53
19+
€71,28
29+
€70,43
39+
€69,59
49+
€68,74
74+
€67,89
99+
€63,65
199+
€62,80
249+
€61,95
499+
€61,10
999+
€59,40
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 110mm
- Width:
- 32mm
Technical
Technical
| d | 75mm |
|---|---|
| D | 110mm |
| H1 | 32mm |
| Dynamic load C | 67.6 kN |
| Static load Co | 183 kN |
| Fatigue load limit Pu | 6.8 kN |
| Minimum load factor A | 0.17 |
| Reference speed | 2400 rpm |
| Limiting Speed | 3400 rpm |
| Weight | 1 kg |
| Seating Washer | U215 |
| d1 | 110mm |
| D1 | 77mm |
| D2 | 92mm |
| D3 | 115mm |
| H | 28.3mm |
| C | 9.5mm |
| R | 90mm |
| s | 49mm |
| r1r2 min | 1mm |
| da max | 96mm |
| Da max | 92mm |
| ra max | 1mm |
