SKU: 53310?SKF

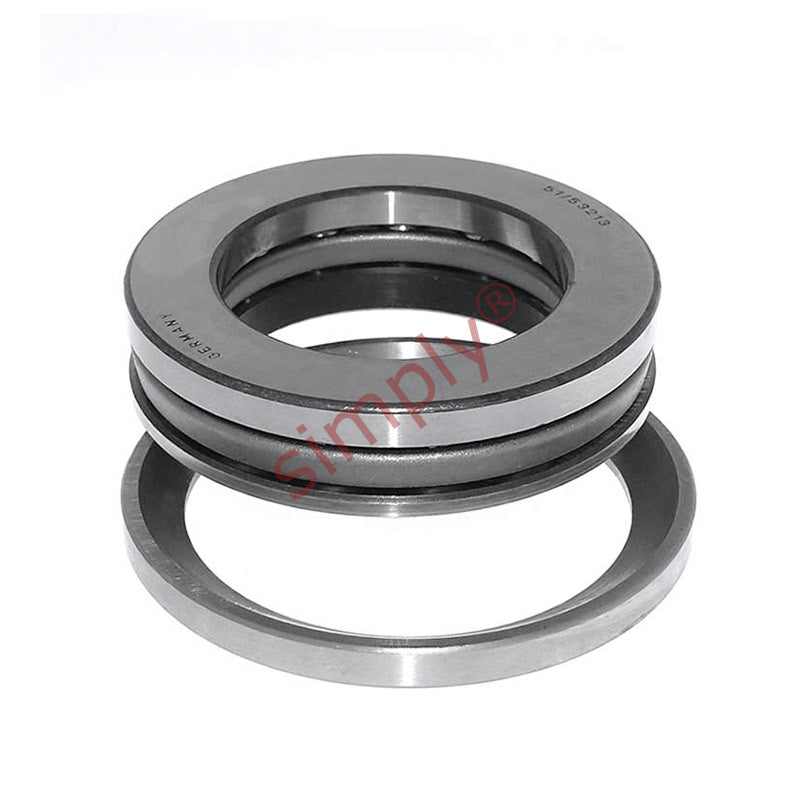

SKF 53310 Single Thrust Ball Bearing with Spherical Housing Seat U310 50x95x37mm
SKF 53310 Single Thrust Ball Bearing with Spherical Housing Seat U310 50x95x37mm
Regular price
€220,83
ex VAT
Regular price
Sale price
€220,83
ex VAT
In stock
Price Break
10+
€196,54
19+
€185,50
29+
€183,29
39+
€181,08
49+
€178,87
74+
€176,66
99+
€165,62
199+
€163,41
249+
€161,21
499+
€159,00
999+
€154,58
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 95mm
- Width:
- 37mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 95mm |
| H1 | 37mm |
| Dynamic load C | 88.4 kN |
| Static load Co | 190 kN |
| Fatigue load limit Pu | 6.95 kN |
| Minimum load factor A | 0.19 |
| Reference speed | 2600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 1.2 kg |
| Seating washer | U310 |
| d1 | 95mm |
| D1 | 52mm |
| D2 | 72mm |
| D3 | 100mm |
| H | 34.3mm |
| C | 11mm |
| R | 72mm |
| s | 28mm |
| r1r2 min | 1.1mm |
| da max | 77mm |
| Da max | 72mm |
| ra max | 1mm |
