SKU: 53408?SKF
SKF 53408 Single Thrust Ball Bearing with Spherical Housing Seat U408 40x90x42mm
SKF 53408 Single Thrust Ball Bearing with Spherical Housing Seat U408 40x90x42mm
Regular price
€323,95
ex VAT
Regular price
Sale price
€323,95
ex VAT
In stock
Price Break
10+
€246,50
19+
€232,65
29+
€229,88
39+
€227,11
49+
€224,34
74+
€221,57
99+
€207,72
199+
€204,96
249+
€202,19
499+
€199,42
999+
€193,88
Share this product
Description
Description
|

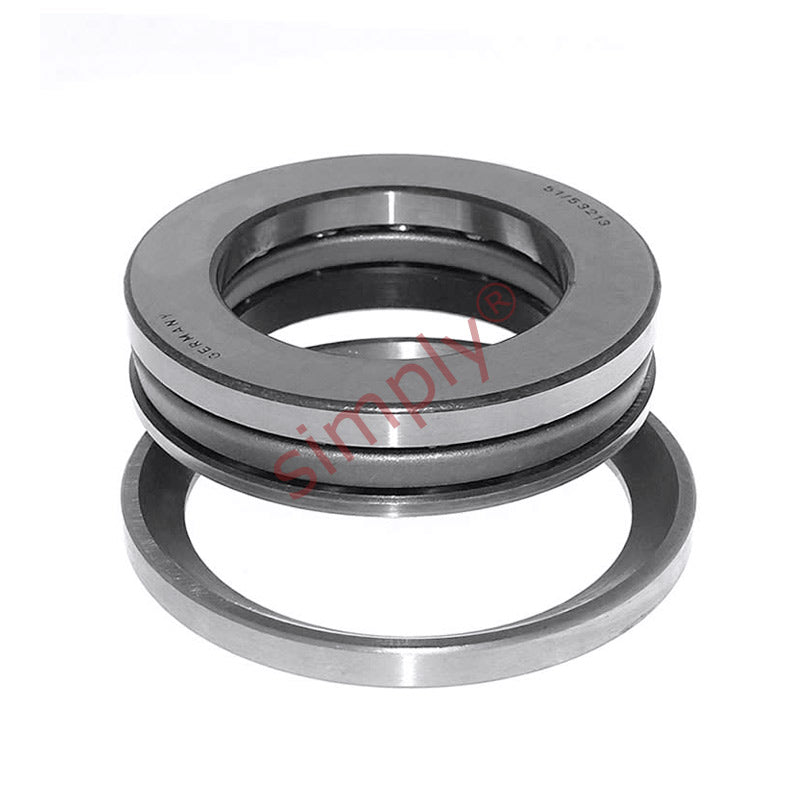

SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 42mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| H1 | 42mm |
| Dynamic load C | 112 kN |
| Static load Co | 224 kN |
| Fatigue load limit Pu | 8.3 kN |
| Minimum load factor A | 0.26 |
| Reference speed | 2400 rpm |
| Limiting speed | 3400 rpm |
| Weight | 1.35 kg |
| Seating washer | U408 |
| d1 | 90mm |
| D1 | 42mm |
| D2 | 65mm |
| D3 | 95mm |
| H | 38.2mm |
| C | 12mm |
| R | 72mm |
| s | 26mm |
| r1r2 min | 1.1mm |
| da max | 70mm |
| Da max | 65mm |
| ra max | 1mm |
