SKU: 540L-100-144-TRANSFLEX

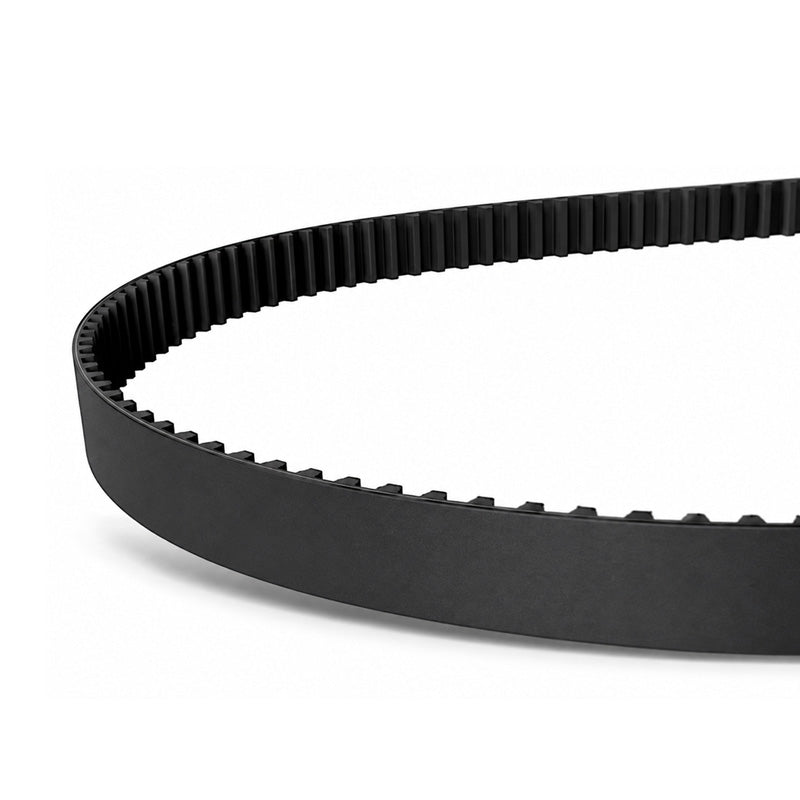

540L100 Transflex Synchronous Toothed Belt 1.00 inch Wide 54 inch Length 144 Teeth Allow 2-3 Days
540L100 Transflex Synchronous Toothed Belt 1.00 inch Wide 54 inch Length 144 Teeth Allow 2-3 Days
Regular price
€18,95
ex VAT
Regular price
Sale price
€18,95
ex VAT
In stock
Price Break
3+
€15,34
5+
€14,72
10+
€14,41
15+
€13,94
20+
€13,63
30+
€12,86
40+
€10,84
50+
€0,00
60+
€0,00
75+
€0,00
100+
€0,00
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Transflex - High Quality
- Belt Width Approx:
- 25.4mm = 1 inch
- Belt Depth Approx:
- 3.6mm
- Belt Length Approx:
- 1371.6mm = 54 inch
- Number of Teeth:
- 144
Technical
Technical
| Belt width | 1.00 inch = 25.40mm |
|---|---|
| Pitch length | 54 inch = 1371.6mm |
| Number of teeth | 144 |
| Tooth pitch t | 0.375 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.07519685 inch |
| Pitch zone u | 0.015 inch |
