SKU: 60-3-NO26-MB

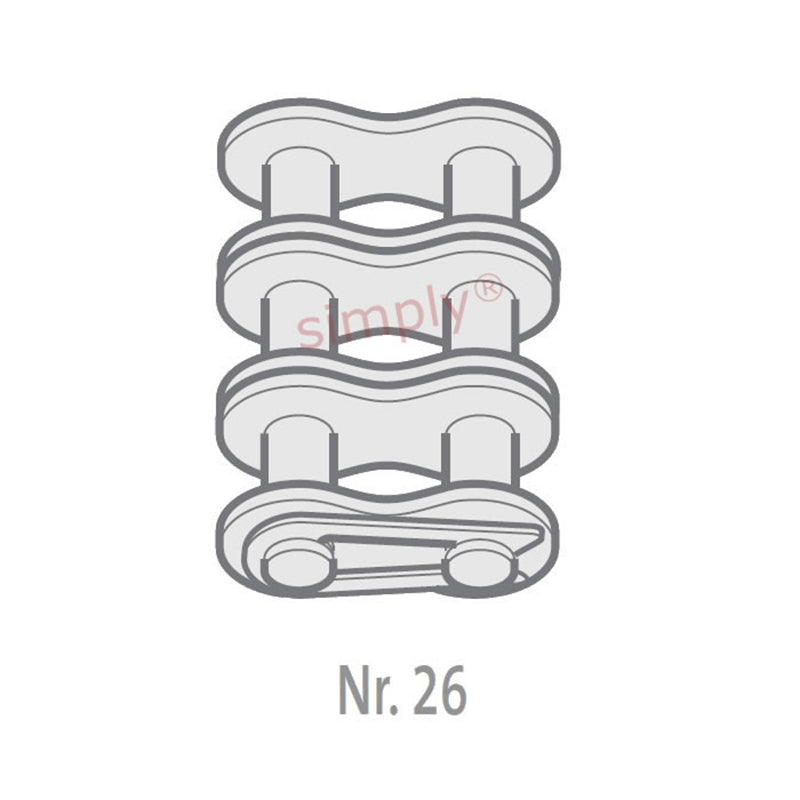

Branded 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Branded 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
Equivalent to: 60-3-CL
In stock
Price Break
2+
€5,22
5+
€4,93
10+
€4,87
29+
€4,81
49+
€4,75
75+
€4,69
100+
€4,40
200+
€4,34
250+
€4,28
500+
€4,23
1000+
€4,11
Description
Description
Branded CL / No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 60-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 18mm |
| Plate Width Inner max (E) | 2.4mm |
| Plate Width Outer max (F) | 2.4mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 71.3mm |
| Connecting Link Extension max (J) | 4.8mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 22.78kg/m |
