SKU: 60-3-SYN-NO26-RENOLD
Renold Synergy 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold Synergy 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
€39,90
ex VAT
Regular price
Sale price
€39,90
ex VAT
In stock
Price Break
10+
€35,51
19+
€33,52
29+
€33,12
39+
€32,72
49+
€32,32
74+
€31,92
99+
€29,93
199+
€29,53
249+
€29,13
499+
€28,73
999+
€27,93
Couldn't load pickup availability
Description
Description

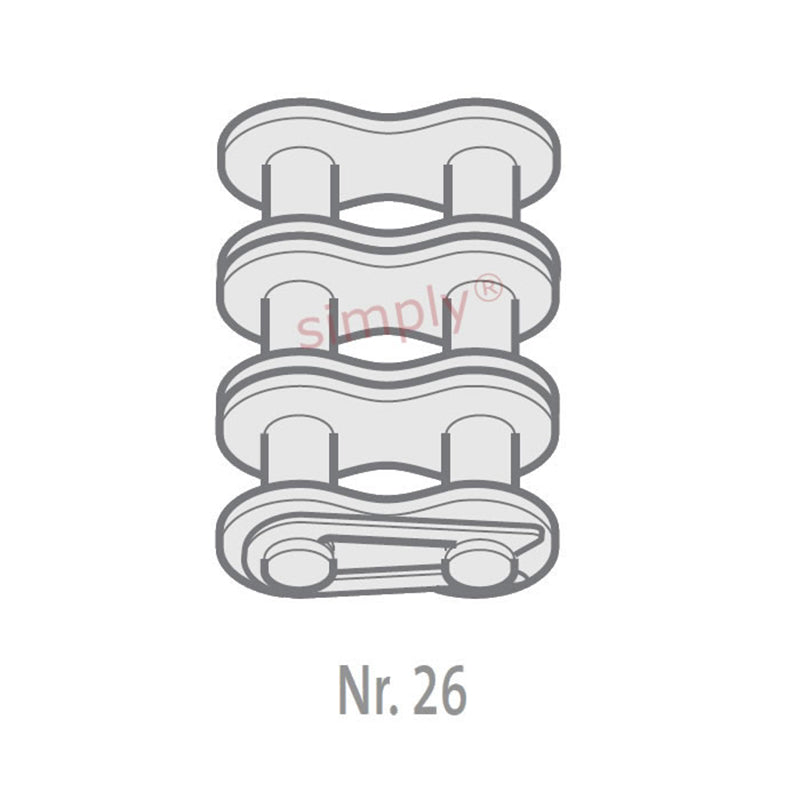

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 70.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 0.01kg/m |
