SKU: 6003-2Z/C3-KOY

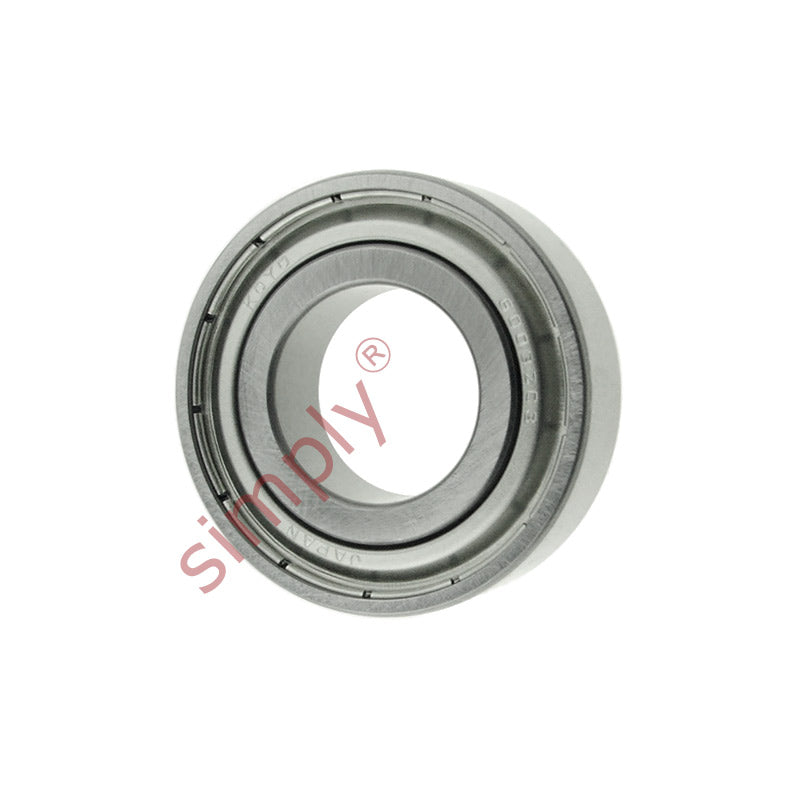

KOYO 60032ZC3 Metal Shielded Deep Groove Ball Bearing 17x35x10mm
KOYO 60032ZC3 Metal Shielded Deep Groove Ball Bearing 17x35x10mm
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
Equivalent to: 6003ZZEC3 6003ZZC3 6003.2ZC3 6003KDDC3 6003DDC3 60032ZRC3 6003FFC3
In stock
Price Break
5+
€4,81
9+
€4,54
19+
€4,49
29+
€4,44
49+
€4,38
74+
€4,33
99+
€4,06
199+
€4,00
249+
€3,95
499+
€3,90
999+
€3,79
Share this product
Description
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6003ZZEC3 6003ZZC3 6003.2ZC3 6003KDDC3 6003DDC3 60032ZRC3 6003FFC3
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 10mm |
| Min radius r | 0.3mm |
| Dynamic load | 6 kN |
| Static load | 3.25 kN |
| Max speed in oil | 25000 rpm |
| Max speed in grease | 12000 rpm |
