SKU: 6005NR-SKF

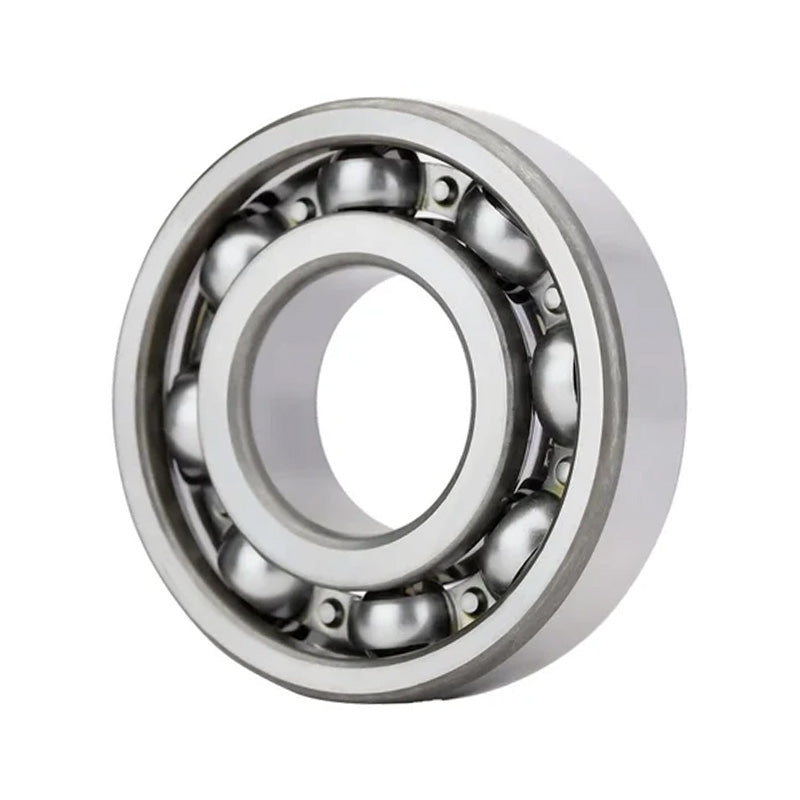

SKF 6005NR Open Type Snap Ring Deep Groove Bearing 25x47x12mm
SKF 6005NR Open Type Snap Ring Deep Groove Bearing 25x47x12mm
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
4+
€9,85
10+
€9,30
20+
€9,19
30+
€9,08
50+
€8,97
75+
€8,86
100+
€8,30
200+
€8,19
250+
€8,08
500+
€7,97
1000+
€7,75
Description
Description
|

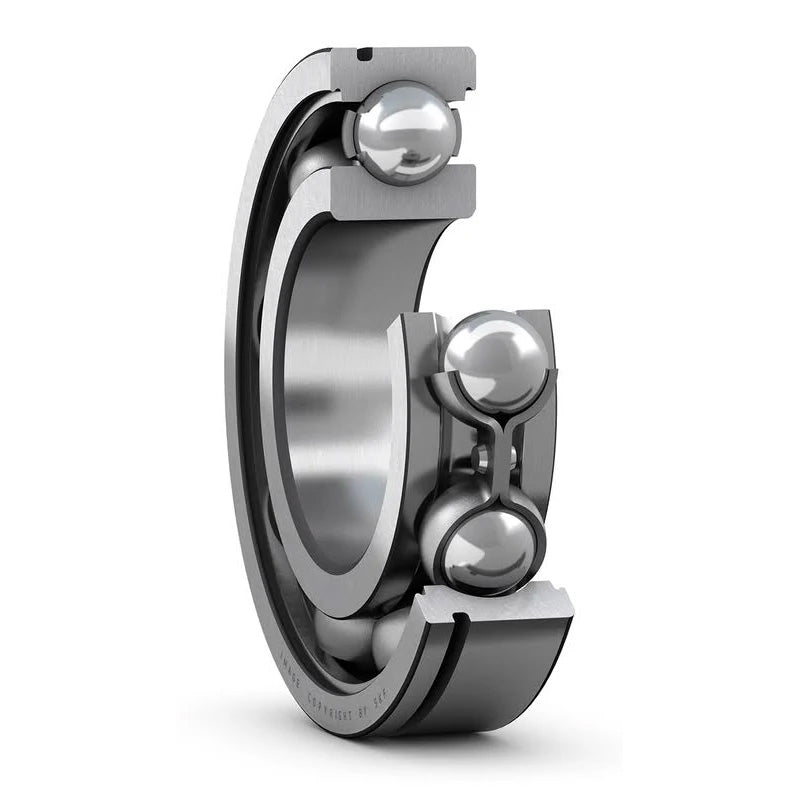

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 275 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Weight | 0.08kg |
| Snap ring | SP 47 |
| d1 | 32mm |
| D2 | 42.2mm |
| D3 | 44.6mm |
| D4 | 52.7mm |
| b | 1.35mm |
| f | 1.12mm |
| C | 2.06mm |
| r1r2 min | 0.6mm |
| ro max | 0.4mm |
| da min | 28.2mm |
| Da max | 43.8mm |
| Db min | 54mm |
| ba min | 1.5mm |
| Ca max | 3.18mm |
| ra max | 0.6mm |
| Calc Factor kr | 0.025 |
| fo | 14 |
