SKU: 6010ZZNR-NSK

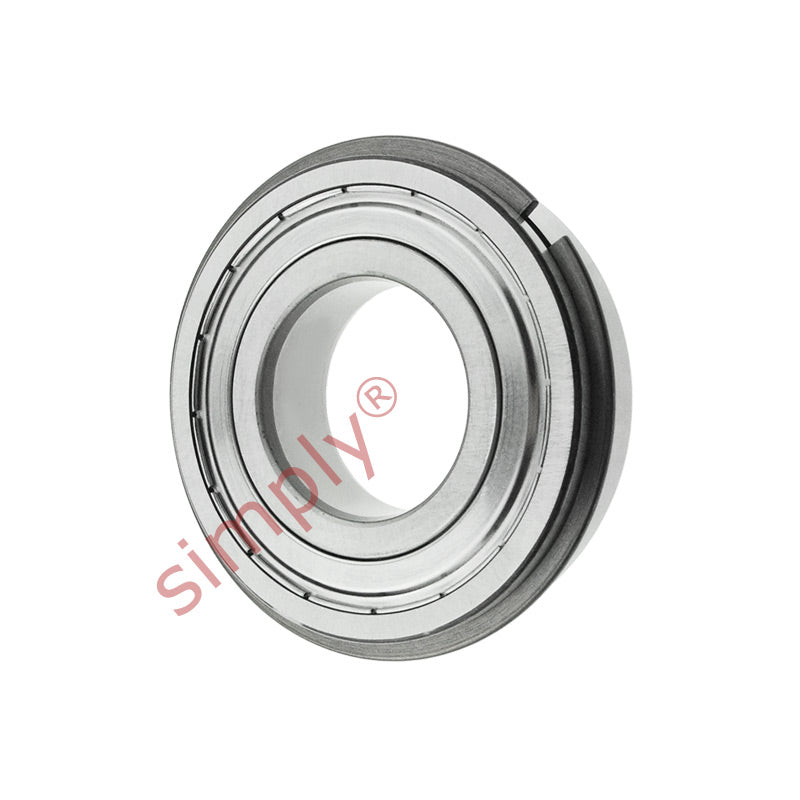

NSK 6010ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 50x80x16mm
NSK 6010ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 50x80x16mm
Regular price
€21,95
ex VAT
Regular price
Sale price
€21,95
ex VAT
Equivalent to: 60102ZNR
In stock
Price Break
4+
€16,46
10+
€15,53
20+
€15,35
30+
€15,16
50+
€14,98
75+
€14,79
100+
€13,87
200+
€13,68
250+
€13,50
500+
€13,31
1000+
€12,94
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 60102ZNR
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 16mm |
| r min | 1mm |
| Dynamic load Cr | 21800 N (2220 kgf) |
| Static load Cor | 16600 N (1700 kgf) |
| Factor | 15.6 |
| Speed in grease | 8500 rpm |
| Speed in oil | 10000 rpm |
| a max | 2.49mm |
| b min | 1.9mm |
| D1 max | 76.81mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 86.6mm |
| f max | 1.7mm |
| da2 min | 55mm |
| da2max | 58.5mm |
| Da2max | 75mm |
| ra max | 1mm |
| Dx min | 88mm |
| Cy max | 3.8mm |
| Weight | 0.261 kg |
