SKU: 6013-2Z-EU

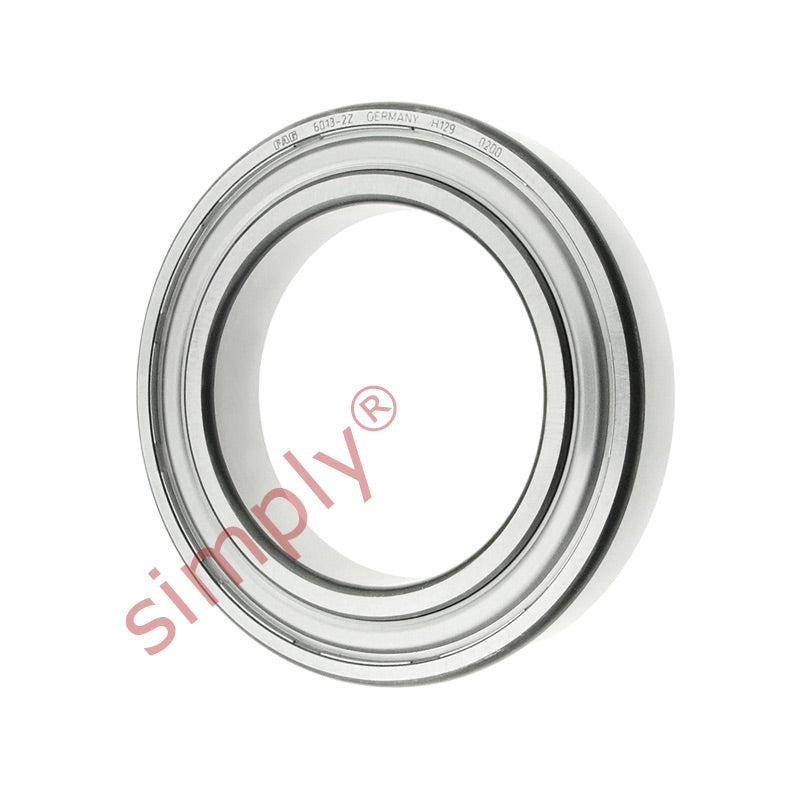

6013ZZ Budget Metal Shielded Deep Groove Ball Bearing 65x100x18mm
Equivalent to: 6013ZZ 60132Z 6013ZZ 60132ZR 6013ZZE 6013FF 6013DD 6013DDC 6013KDDC EL652Z EL65ZZ 9113KDD 9113FF 113KSFF 773L13 6113PP
In stock
Price Break
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6013ZZ 60132Z 6013ZZ 60132ZR 6013ZZE 6013FF 6013DD 6013DDC 6013KDDC EL652Z EL65ZZ 9113KDD 9113FF 113KSFF 773L13 6113PP
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| B | 18mm |
| r min | 1.1mm |
| Dynamic load Cr | 30.5 kN |
| Static load Cor | 25.2 kN |
| Speed in grease | 6600 rpm |
| Speed in oil | 7800 rpm |
