SKU: 6015-2RS-CDX

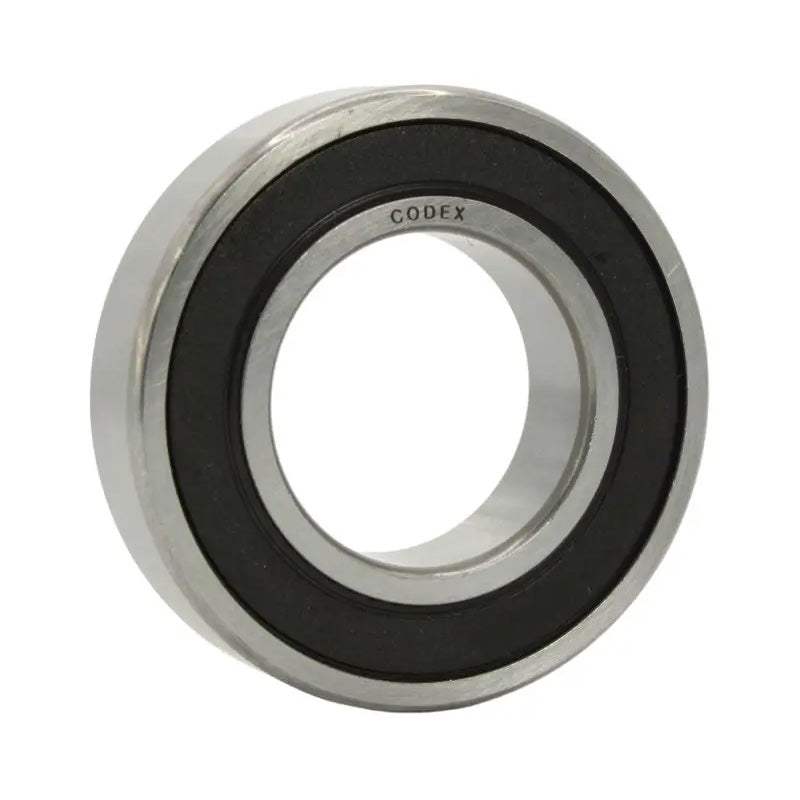

Codex 60152RS Rubber Sealed Deep Groove Ball Bearing 75x115x20mm
Codex 60152RS Rubber Sealed Deep Groove Ball Bearing 75x115x20mm
Regular price
€50,95
ex VAT
Regular price
Sale price
€50,95
ex VAT
Equivalent to: 60152RS 60152RSH 60152RS1 60152RSR 60152RSL 6015LFS 6015EE 6015DU 6015LLU EL752RS 6015PP 9115PP 115KSZZ 993L15 6115KK 10L75
In stock
Price Break
4+
€38,51
10+
€36,35
20+
€35,91
30+
€35,48
50+
€35,05
75+
€34,61
100+
€32,45
200+
€32,02
250+
€31,59
500+
€31,15
1000+
€30,29
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60152RS 60152RSH 60152RS1 60152RSR 60152RSL 6015LFS 6015EE 6015DU 6015LLU EL752RS 6015PP 9115PP 115KSZZ 993L15 6115KK 10L75
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 115mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 115mm |
| B | 20mm |
| Dynamic load C | 41.6 kN |
| Static load Co | 33.5 kN |
| Fatigue load limit Pu | 1.43 |
| Reference speed | 12000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 0.64 kg |
| d1 | 87.9mm |
| r1r2 | 1.1mm |
| da min | 81mm |
| Da max | 109mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
