SKU: 6022NR-SKF

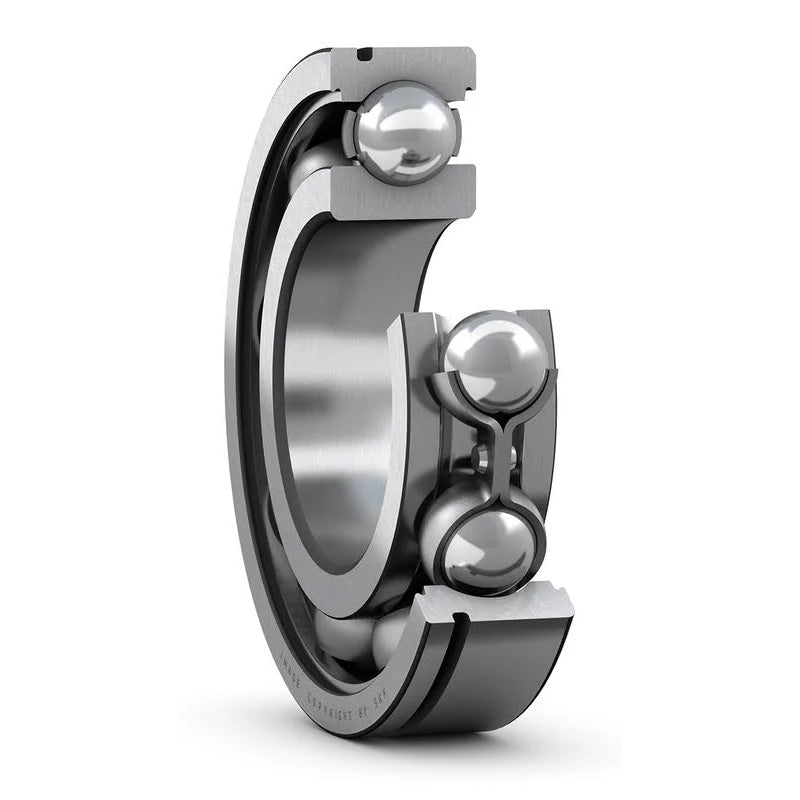

SKF 6022NR Open Type Snap Ring Deep Groove Bearing 110x170x28mm
SKF 6022NR Open Type Snap Ring Deep Groove Bearing 110x170x28mm
Regular price
€373,95
ex VAT
Regular price
Sale price
€373,95
ex VAT
In stock
Price Break
4+
€284,20
10+
€268,23
20+
€265,04
30+
€261,84
50+
€258,65
75+
€255,46
100+
€239,49
200+
€236,30
250+
€233,11
500+
€229,91
1000+
€223,53
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 110mm |
|---|---|
| D | 170mm |
| B | 28mm |
| Dynamic load C | 85.2 kN |
| Static load Co | 73.5 kN |
| Fatigue load limit Pu | 2.6 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 1.95kg |
| Snap ring | SP 170 |
| d1 | 129mm |
| D2 | 156mm |
| D3 | 163.65mm |
| D4 | 182.9mm |
| b | 3.5mm |
| f | 3.1mm |
| C | 3.71mm |
| r1r2 min | 2mm |
| ro max | 0.6mm |
| da min | 119mm |
| Da max | 161mm |
| Db min | 185mm |
| ba min | 4mm |
| Ca max | 6.81mm |
| ra max | 2mm |
| Calc Factor kr | 0.025 |
| fo | 16 |
