SKU: 6024-2Z/C3-SKF

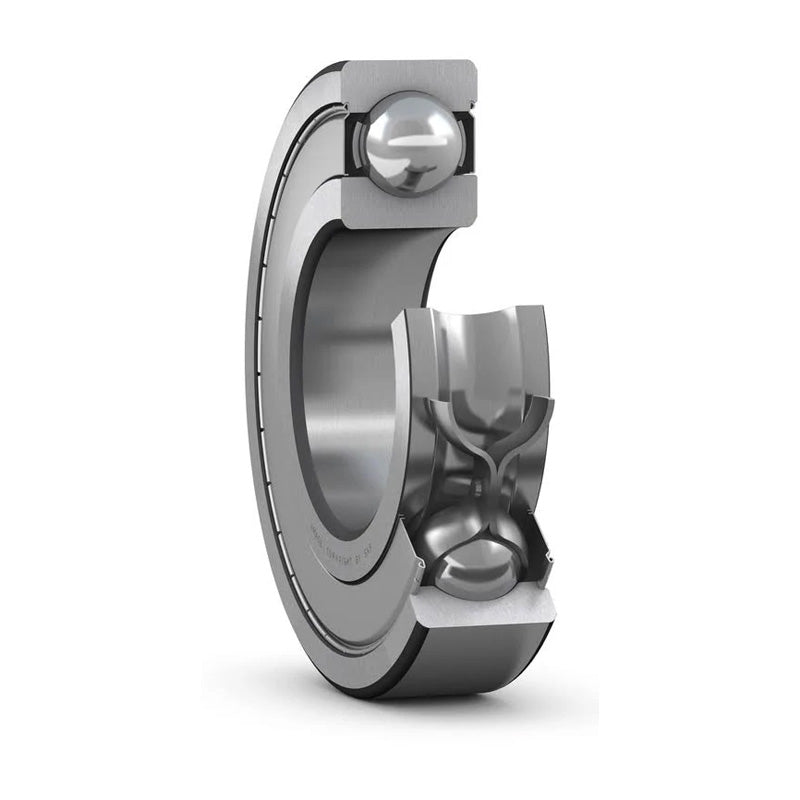

SKF 60242ZC3 Metal Shielded Deep Groove Ball Bearing 120x180x28mm
SKF 60242ZC3 Metal Shielded Deep Groove Ball Bearing 120x180x28mm
Regular price
€317,95
ex VAT
Regular price
Sale price
€317,95
ex VAT
Equivalent to: 6024ZZEC3 6024ZZC3 6024.2ZC3 6024KDDC3 6024DDC3 60242ZRC3 6024FFC3
In stock
Price Break
4+
€242,12
10+
€228,52
20+
€225,80
30+
€223,08
50+
€220,36
75+
€217,63
100+
€204,03
200+
€201,31
250+
€198,59
500+
€195,87
1000+
€190,43
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6024ZZEC3 6024ZZC3 6024.2ZC3 6024KDDC3 6024DDC3 60242ZRC3 6024FFC3
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 28mm |
| Dynamic load C | 88.4 kN |
| Static load Co | 80 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 3800 rpm |
| Weight | 2.05 kg |
| d1 | 139mm |
| d2 | 0mm |
| D2 | 165mm |
| r1r2 min | 2mm |
| da min | 129mm |
| da max | 0mm |
| Da max | 171mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
