SKU: 6024-NACHI
NACHI 6024 Open Deep Groove Ball Bearing 120x180x28mm
NACHI 6024 Open Deep Groove Ball Bearing 120x180x28mm
Regular price
€114,09
ex VAT
Regular price
Sale price
€114,09
ex VAT
In stock
Price Break
10+
€101,54
19+
€95,84
29+
€94,69
39+
€93,55
49+
€92,41
74+
€91,27
99+
€85,57
199+
€84,43
249+
€83,29
499+
€82,14
999+
€79,86
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

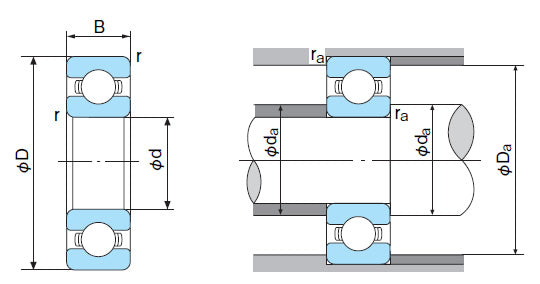

| Inside Diameter d | 120mm |
|---|---|
| Outside Diameter D | 180mm |
| Width B | 28mm |
| Min radius r | 2mm |
| Dynamic load | 88000 kN |
| Static load | 79500 kN |
| Max speed in oil | 4300 rpm |
| Max speed in grease | 3600 rpm |
| da min | 128mm |
| Da max | 172mm |
| ra max | 2mm |
| Weight | 2.67 kg |
