SKU: 61804-2RS1-EU

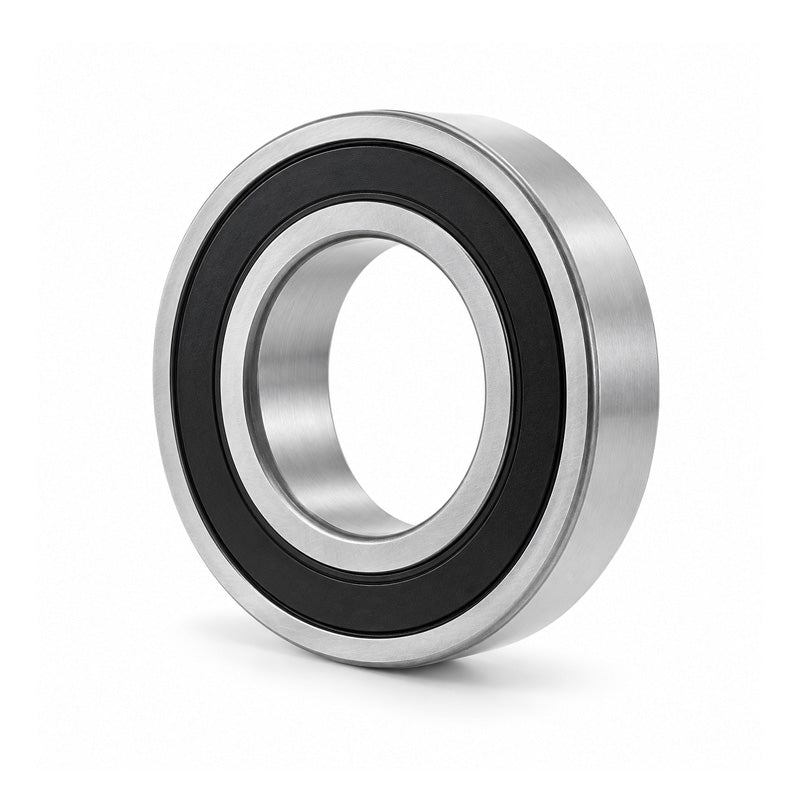

68042RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 20x32x7mm
Equivalent to: 61804NSE 61804DU 61804RS 618042RSH 61804P 61804RSR 61804LU 6804NSE 6804DU 6804RS 68042RSH 6804P 6804RSR 6804LU 618042NSE 61804DDU 618042RS 6180422RSH 61804PP 618042RSR 61804LLU 618042RS2 61804RS2 618042RSH 618042RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61804NSE 61804DU 61804RS 618042RSH 61804P 61804RSR 61804LU 6804NSE 6804DU 6804RS 68042RSH 6804P 6804RSR 6804LU 618042NSE 61804DDU 618042RS 6180422RSH 61804PP 618042RSR 61804LLU 618042RS2 61804RS2 618042RSH 618042RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 20mm |
|---|---|
| D | 32mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4 kN |
| Static load Cor | 2.45 kN |
| Speed in grease | 21000 rpm |
| Speed in oil | 25000 rpm |
