SKU: 61812-2RSR-MB

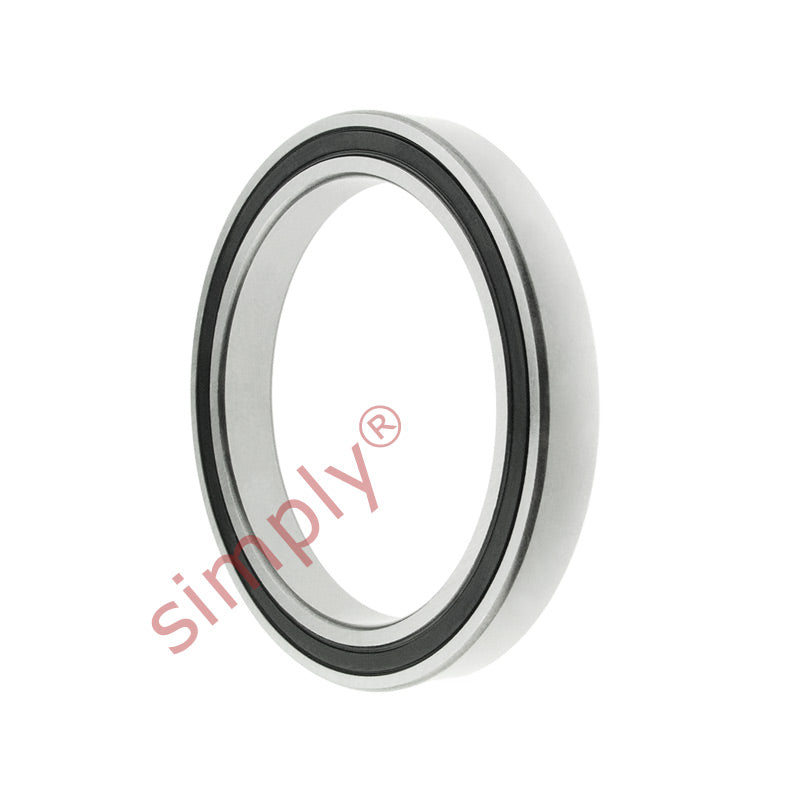

Major Brand 618122RSR Rubber Sealed Thin Deep Groove Ball Bearing 60x78x10mm
Equivalent to: 61812NSE 61812DU 61812RS 61812RSH 61812P 61812RSR 61812LU 6812NSE 6812DU 6812RS 6812RSH 6812P 6812RSR 6812LU 618122NSE 61812DDU 618122RS 618122RS1 618122RSH 61812PP 61812LLU 68122NSE 6812DDU 68122RS 68122RS1 68122RSH 6812PP 68122RSR 6812LLU
In stock
Price Break
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 61812NSE 61812DU 61812RS 61812RSH 61812P 61812RSR 61812LU 6812NSE 6812DU 6812RS 6812RSH 6812P 6812RSR 6812LU 618122NSE 61812DDU 618122RS 618122RS1 618122RSH 61812PP 61812LLU 68122NSE 6812DDU 68122RS 68122RS1 68122RSH 6812PP 68122RSR 6812LLU
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 78mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 60mm |
|---|---|
| D | 78mm |
| B | 10mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 11.4 kN |
| Fatigue load limit Pu | 0.49 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 4800 rpm |
| Mass | 0.11 kg |
| d1 | 65.6mm |
| D2 | 74.5mm |
| r1r2 min | 0.3mm |
| da min | 62 |
