SKU: 61909-2RS1-EU

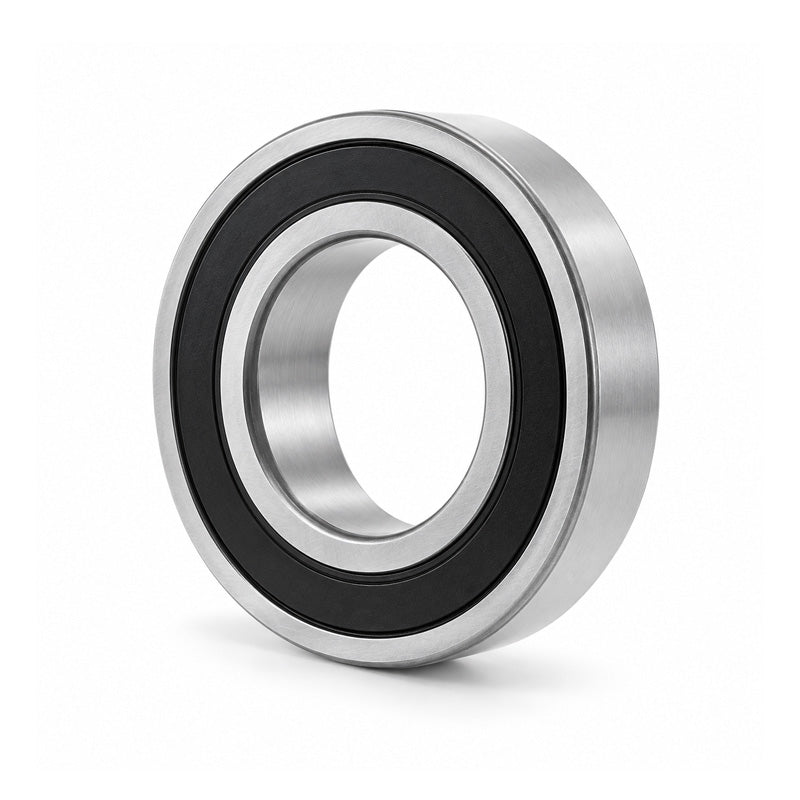

69092RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 45x68x12mm
Equivalent to: 61909NSE 61909DU 61909RS 619092RSH 61909P 61909RSR 61909LU 6909NSE 6909DU 6909RS 69092RSH 6909P 6909RSR 6909LU 619092NSE 61909DDU 619092RS 6190922RSH 61909PP 619092RSR 61909LLU 619092RS2 61909RS2 619092RSH 619092RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61909NSE 61909DU 61909RS 619092RSH 61909P 61909RSR 61909LU 6909NSE 6909DU 6909RS 69092RSH 6909P 6909RSR 6909LU 619092NSE 61909DDU 619092RS 6190922RSH 61909PP 619092RSR 61909LLU 619092RS2 61909RS2 619092RSH 619092RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 45mm |
|---|---|
| D | 68mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 14.1 kN |
| Static load Cor | 10.9 kN |
| Speed in grease | 9700 rpm |
| Speed in oil | 11000 rpm |
