SKU: 6200ZZNR-NSK

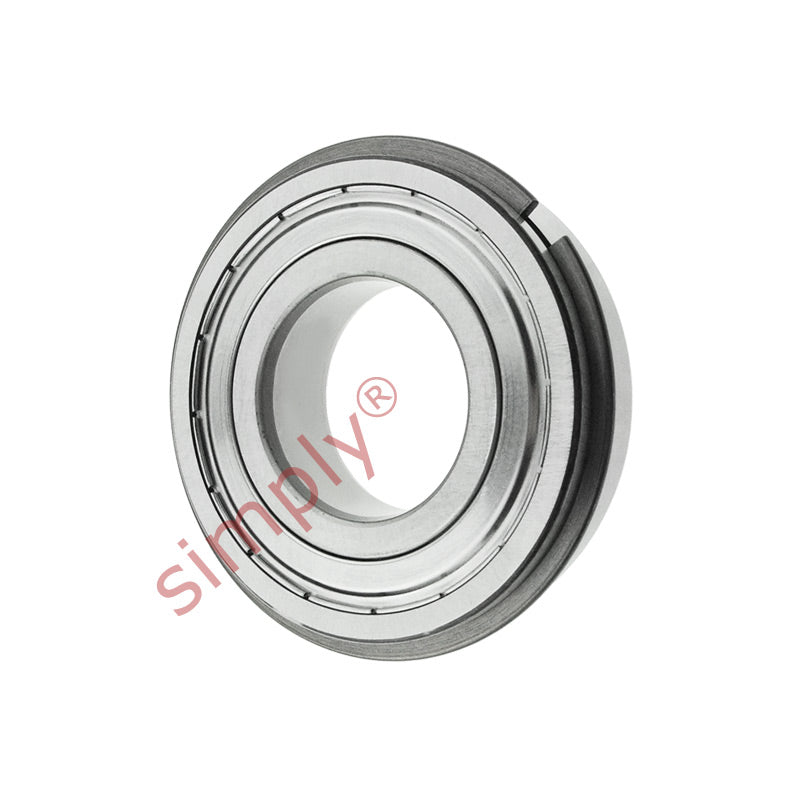

NSK 6200ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 10x30x9mm
NSK 6200ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 10x30x9mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
Equivalent to: 62002ZNR
In stock
Price Break
4+
€7,00
10+
€6,61
20+
€6,53
30+
€6,45
50+
€6,37
75+
€6,29
100+
€5,90
200+
€5,82
250+
€5,74
500+
€5,66
1000+
€5,50
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 62002ZNR
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 9mm |
| r min | 0.6mm |
| Dynamic load Cr | 5100 N (520 kgf) |
| Static load Cor | 2390 N (244 kgf) |
| Factor | 13.2 |
| Speed in grease | 24000 rpm |
| Speed in oil | 30000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 28.17mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 34.7mm |
| f max | 1.12mm |
| da2 min | 14mm |
| da2max | 16mm |
| Da2max | 26mm |
| ra max | 0.6mm |
| Dx min | 35.5mm |
| Cy max | 2.9mm |
| Weight | 0.032 kg |
