SKU: 6202-2Z/VA228-SKF

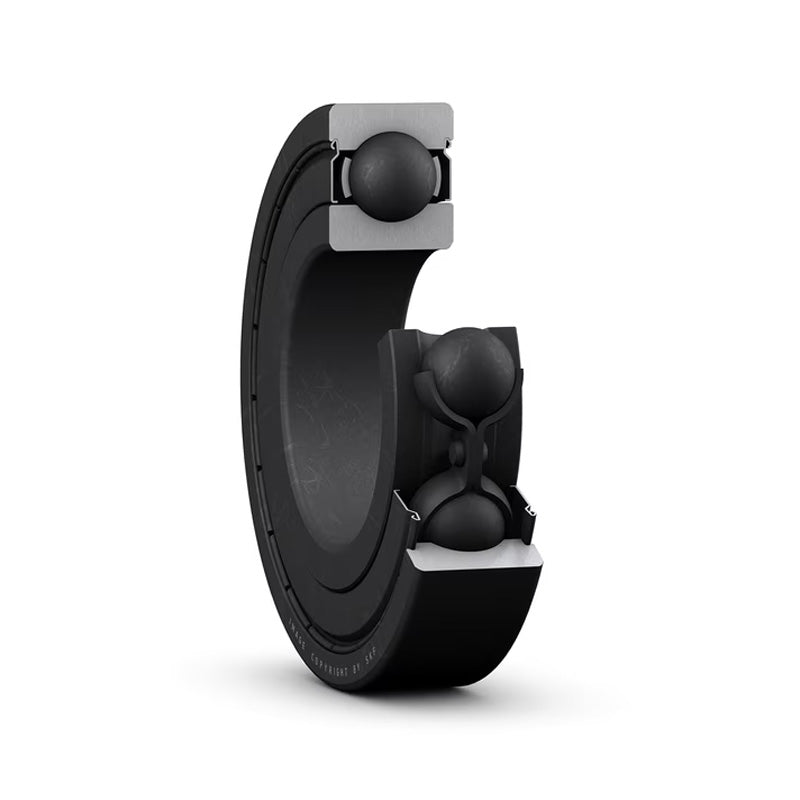

SKF 62022ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 15x35x11mm
SKF 62022ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 15x35x11mm
Regular price
€89,95
ex VAT
Regular price
Sale price
€89,95
ex VAT
In stock
Price Break
10+
€68,00
19+
€64,18
29+
€63,42
39+
€62,66
49+
€61,89
74+
€61,13
99+
€57,31
199+
€56,54
249+
€55,78
499+
€55,01
999+
€53,49
Share this product
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| d1 | 21.5mm |
| D2 | 30.4mm |
| r1r2 | 0.6mm |
| Basic load rating Co | 3.75 kN |
| Weight | 0.043 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
