SKU: 6203-2Z/VA228-SKF

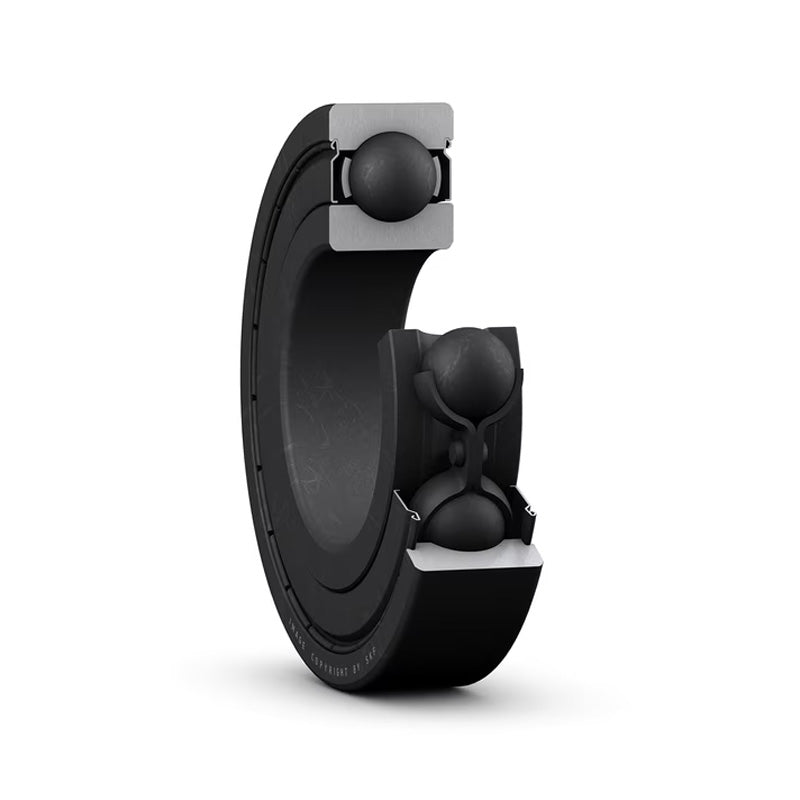

SKF 62032ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 17x40x12mm
SKF 62032ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 17x40x12mm
Regular price
€93,58
ex VAT
Regular price
Sale price
€93,58
ex VAT
In stock
Price Break
10+
€83,29
19+
€78,61
29+
€77,67
39+
€76,74
49+
€75,80
74+
€74,86
99+
€70,19
199+
€69,25
249+
€68,31
499+
€67,38
999+
€65,51
Couldn't load pickup availability
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| d1 | 24.2mm |
| D2 | 35mm |
| r1r2 | 0.6mm |
| Basic load rating Co | 4.75 kN |
| Weight | 0.06 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
