SKU: 6203-ZZE-NACHI

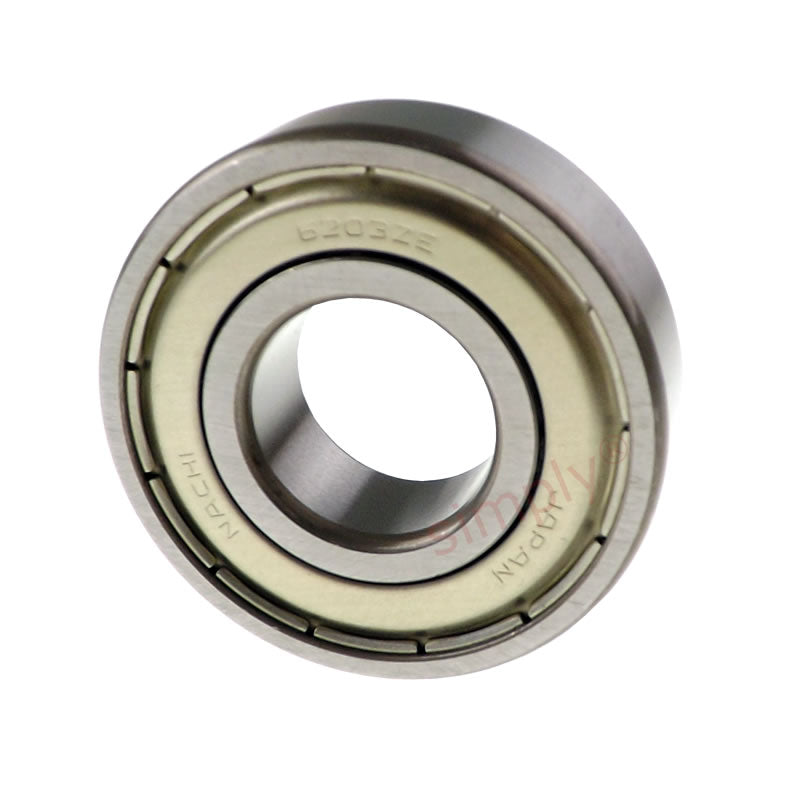

NACHI 6203ZZE Metal Shielded Deep Groove Ball Bearing 17x40x12mm
NACHI 6203ZZE Metal Shielded Deep Groove Ball Bearing 17x40x12mm
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
Equivalent to: 6203ZZ 62032Z 6203.2Z 6203KDD 6203DD 62032ZR 6203FF
In stock
Price Break
5+
€4,64
9+
€4,38
19+
€4,33
29+
€4,28
49+
€4,23
74+
€4,17
99+
€3,91
199+
€3,86
249+
€3,81
499+
€3,76
999+
€3,65
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6203ZZ 62032Z 6203.2Z 6203KDD 6203DD 62032ZR 6203FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 40mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9550 kN |
| Static load | 4800 kN |
| Max speed | 18000 rpm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.6mm |
| Weight | 0.065 kg |
