SKU: 6204NR/C3-MB

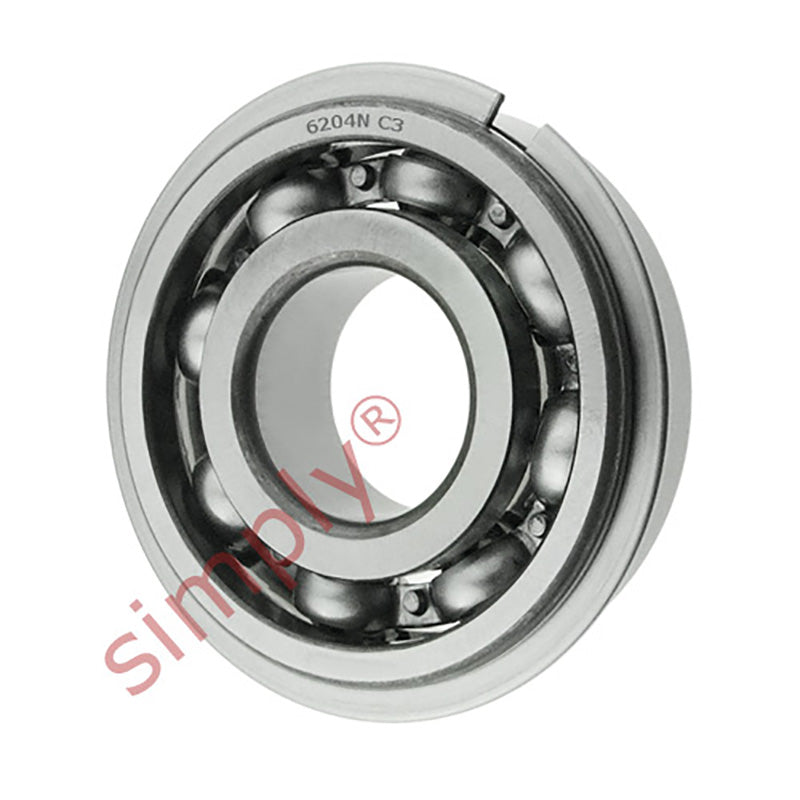

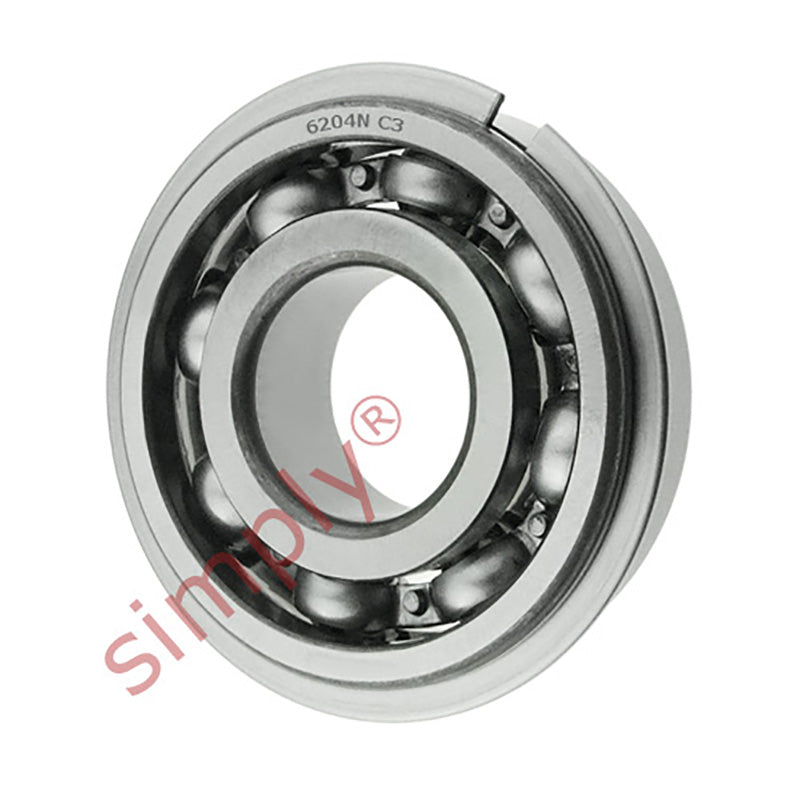

6204NRC3 Deep Groove Ball Bearing with Snap Ring 20x47x14mm
6204NRC3 Deep Groove Ball Bearing with Snap Ring 20x47x14mm
Regular price
€8,43
ex VAT
Regular price
Sale price
€8,43
ex VAT
In stock
Price Break
10+
€7,50
19+
€7,08
29+
€7,00
39+
€6,91
49+
€6,83
74+
€6,74
99+
€6,32
199+
€6,24
249+
€6,15
499+
€6,07
999+
€5,90
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dyamic load C | 13.5 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.28 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Mass | 0.11 kg |
| d1 | 28.8mm |
| d2 | 38.5mm |
| D2 | 40.6mm |
| r1r2 min | 1mm |
| da min | 25.6 |
