SKU: 6206ETN9/C3-SKF

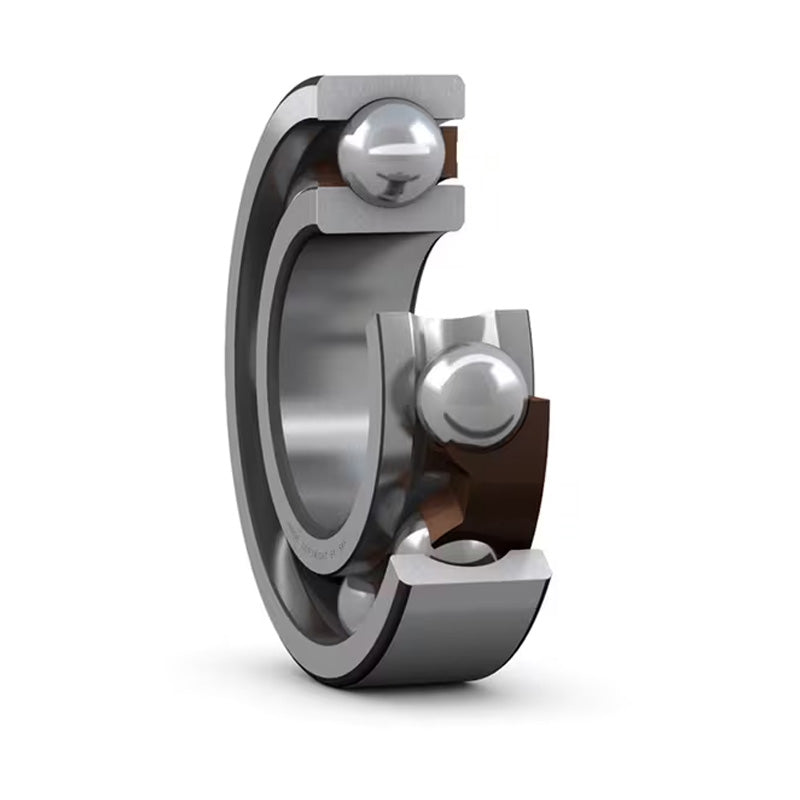

SKF 6206ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 30x62x16mm
SKF 6206ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 30x62x16mm
Regular price
€39,95
ex VAT
Regular price
Sale price
€39,95
ex VAT
In stock
Price Break
4+
€29,96
10+
€28,27
20+
€27,94
30+
€27,60
50+
€27,26
75+
€26,93
100+
€25,25
200+
€24,91
250+
€24,57
500+
€24,24
1000+
€23,56
Share this product
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 16mm |
| Dynamic load | 23.4 kN |
| Static load | 12.9 kN |
| Fatigue load limit Pu | 0.54 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 15000 rpm |
| Weight | 0.19 kg |
| d1 | 39.5mm |
| D1 | 52.9mm |
| D2 | n/amm |
| r1r2 min | 1mm |
| da min | 35.6mm |
| Da max | 56.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 13 |
